Off-(On) 19mm Stainless Steel Vandal Resistant Push Button Switch 2A SPST Screw
SKU 484358
MPN: 484358
Availability:
50 in stock
Original price
£4.66
-
Original price
£4.66
Original price
£4.66
£4.66
£4.66
-
£4.66
Current price
£4.66

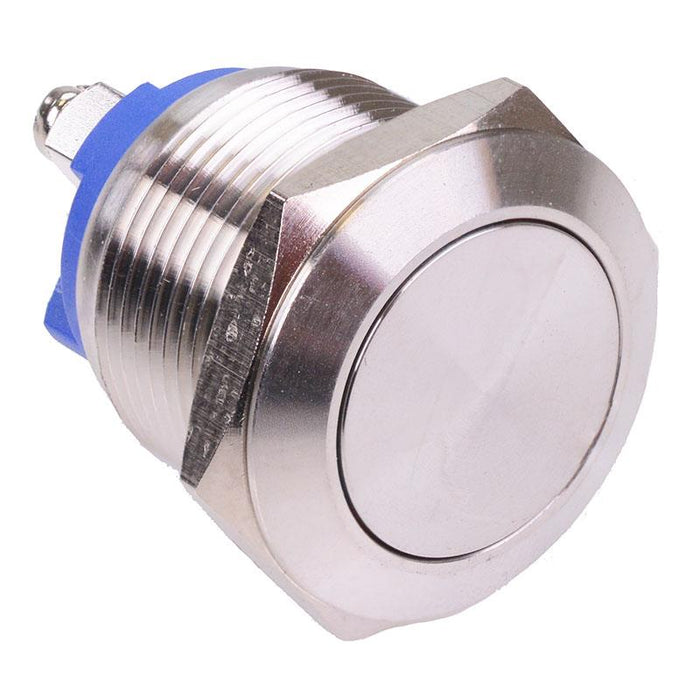

Vandal resistant push button switch manufactured from stainless steel featuring a flat button and suitable for a 19mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.
Momentary action SPST contacts 19mm panel cut-out Stainless steel body Screw terminals 2A 48VDC rating 1,000,000 cycles mechanical life
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Electrical Life | 200,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Gold Plated Brass |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 19mm |
| Panel Thickness | 1-8mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 48VDC |
