Off-(On) 22mm Metal Momentary Piezo Switch SPST

by Langir
SKU 485888

MPN: PZ-22A0F1NOM, height 1.3mm, flat head

Availability:
46 in stock
Original price £17.17 - Original price £17.17
Original price
£17.17
£17.17 - £17.17
Current price £17.17

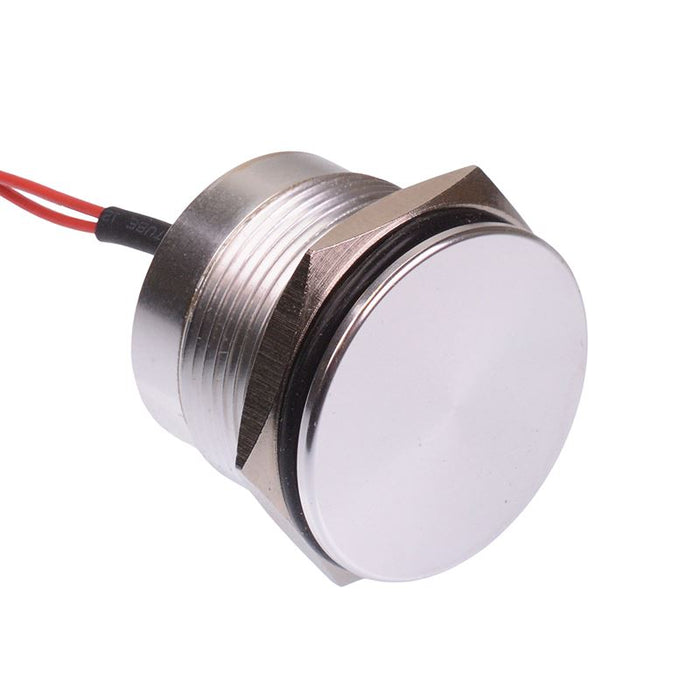

22mm momentary piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.

  • NO momentary function
  • 22mm panel cut-out diameter
  • 1.3mm height flat operator
  • 25mm diameter head
  • Flying leads
  • Rating: 200mA 24VAC/DC
  • Specification
    Actuation Momentary
    Back Order Lead Time 45 Days
    Contact Configuration SPST
    Contact Rating 0.2A 24VAC/DC
    Current Rating 0.2A
    Electrical Life 50,000,000+ Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Aluminium
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 2-6N
    Operating Temperature -40°C to +75°C
    Panel Cut Out 22mm
    Protection Level IP68
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 24VAC/DC
