Off-(On) 22mm Raised Stainless Steel Vandal Resistant Push Button Switch 2A SPST

SKU 484361

MPN: 484361

30 in stock
Original price £9.53 - Original price £9.53
Original price
£9.53 Inc VAT
£9.53 - £9.53
Current price £9.53 Inc VAT

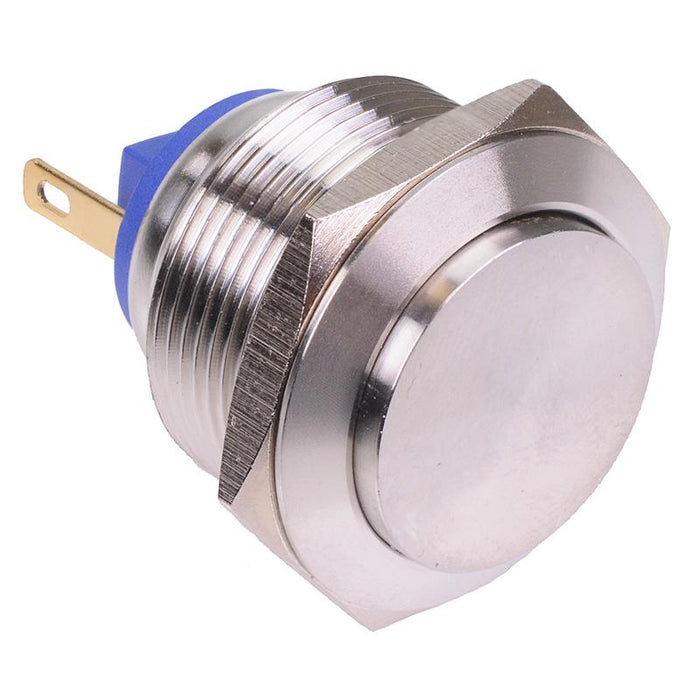

Vandal resistant push button switch manufactured from stainless steel featuring a raised button and suitable for a 22mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.

  • Momentary action
  • SPST contacts
  • 22mm panel cut-out
  • Stainless steel body
  • 2.8 x 0.5mm terminals
  • 2A 48VDC rating
  • 1,000,000 cycles mechanical life
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration SPST
    Contact rating 2A 48VDC
    Current rating 2A
    Electrical life 200,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +55°C
    Panel cut out 22mm
    Panel thickness 1-8mm
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 48VDC
