Off-(On) Black Momentary Toggle Flick Switch SPST 20A 12VDC
SKU 482226
MPN: 482226
Availability:
23 in stock
Original price
£0.95
-
Original price
£0.95
Original price
£0.95
£0.95
£0.95
-
£0.95
Current price
£0.95

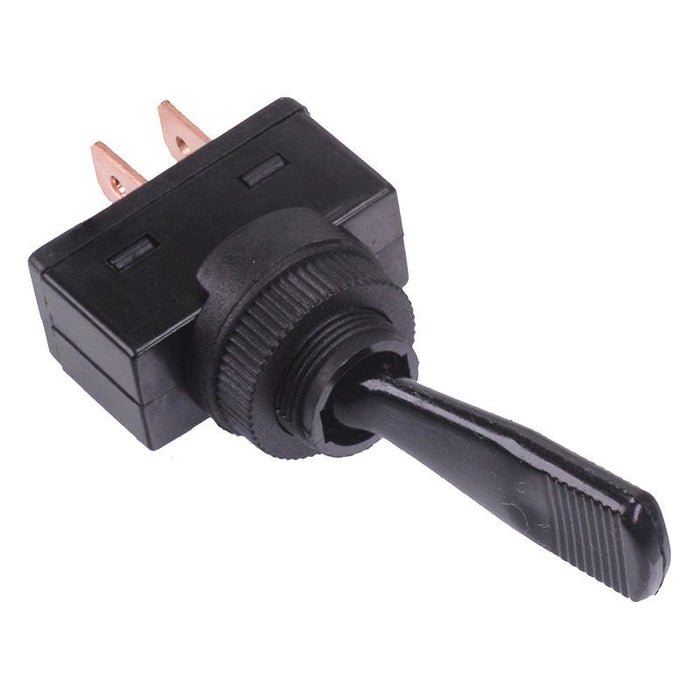

Off-(On) momentary flick toggle switch featuring a large actuator and quick connect terminals, suitable for panel mount applications including automotive.
Off-(On) action SPST contacts Panel cut-out: 12mm 6.3mm quick connect terminals Rating: 20A 12VDC Actuator dimensions: 27 x 11.2mm (height x width) Dimensions: 62 x 26.2 x (height x length)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
