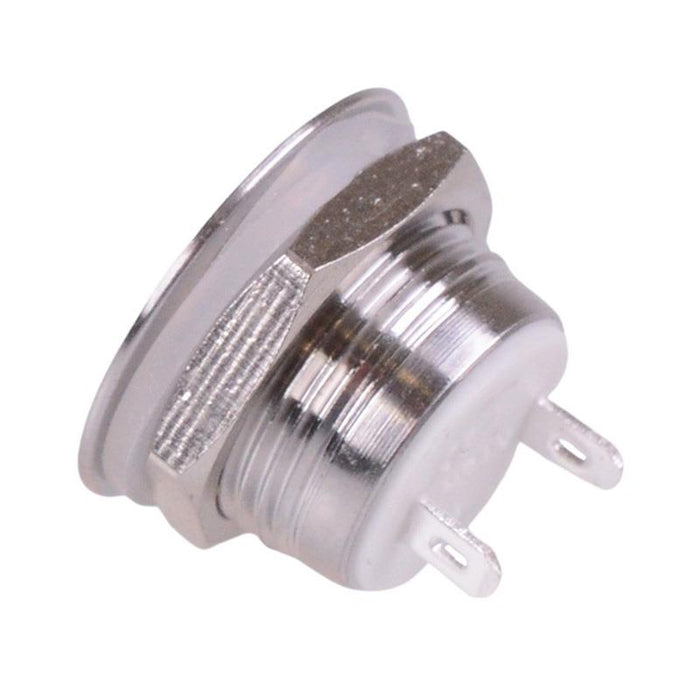

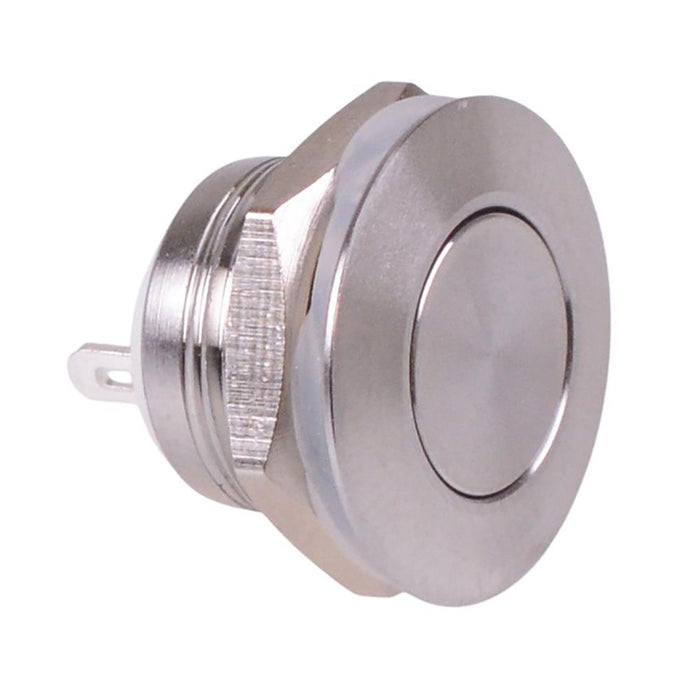

Off-(On) Momentary 12mm Flat Push Button Switch Stainless Steel IP67
SKU 490262
MPN: HBGQ12SF-10W/J/S
Availability:
48 in stock
Original price
£5.45
-
Original price
£5.45
Original price
£5.45
£5.45
£5.45
-
£5.45
Current price
£5.45
Off-(On) momentary push button switch featuring SPST normally open contacts and stainless steel housing with a flat button. The switch featuring IP67 protection rating and solder terminals, suitable for a wide range of applications including control panels, automotive, appliances, industrial etc.
Off-(On) operation SPST-NO contacts Stainless steel housing Solder lug terminals IP67 protection rating Rating: 50mA 12VDC Panel thickness: 4mm max Panel cut-out: 12mm Dimensions: 13.5 x 15.8mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 0.05A 12VDC |
| Current Rating | 0.05A |
| Electrical Life | 80,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 4mm Max |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
