Off-(On) Momentary 12mm Vandal Resistant Push Switch SPST
SKU 481610
MPN: 481610
Availability:
63 in stock
Original price
£3.84
-
Original price
£3.84
Original price
£3.84
Inc VAT
£3.84
-
£3.84
Current price
£3.84
Inc VAT

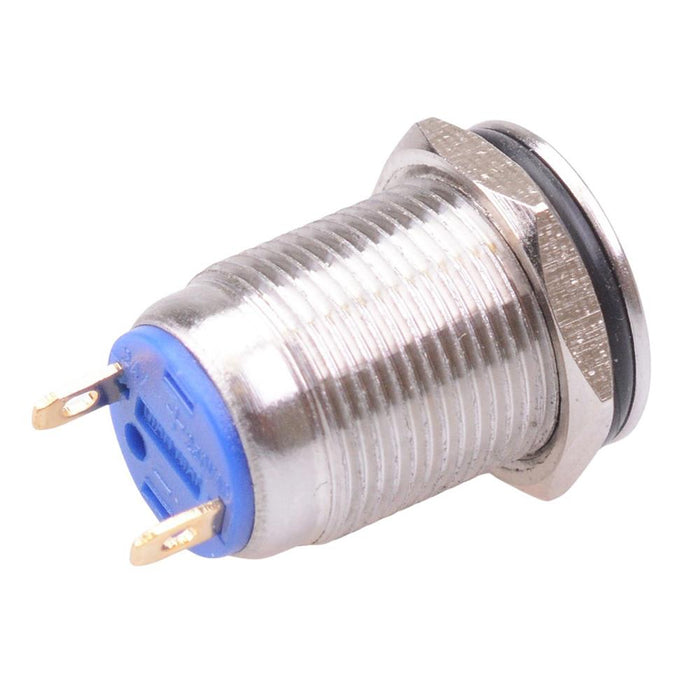

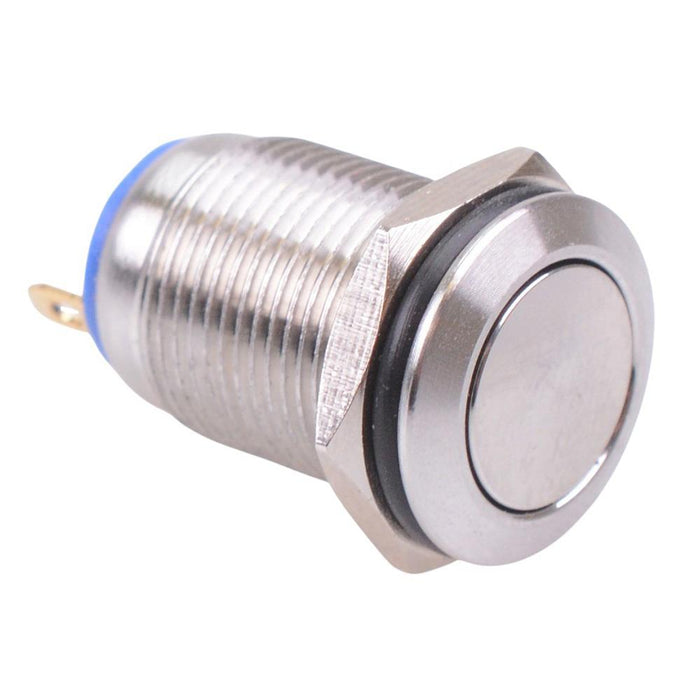

Vandal resistant push button switch manufactured from stainless steel, featuring a momentary Off-(On) operating and SPST contacts. The switch features IP65 protection and requires a 12mm cut-out making it suitable for a wide range of applications.
Off-(On) momentary action SPST contacts IP65 protection rating 12mm panel cut-out diameter Solder terminals Rating: 2A 36VDC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Contact configuration | SPST |
| Contact rating | 2A 36VDC |
| Current rating | 2A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 36VDC |
