Off-(On) Momentary 16mm Metal Push Button Switch SPST Screw Terminals

SKU 490372

MPN: 490372

Availability:
91 in stock
Original price £3.41 - Original price £3.41
Original price
£3.41
£3.41 - £3.41
Current price £3.41

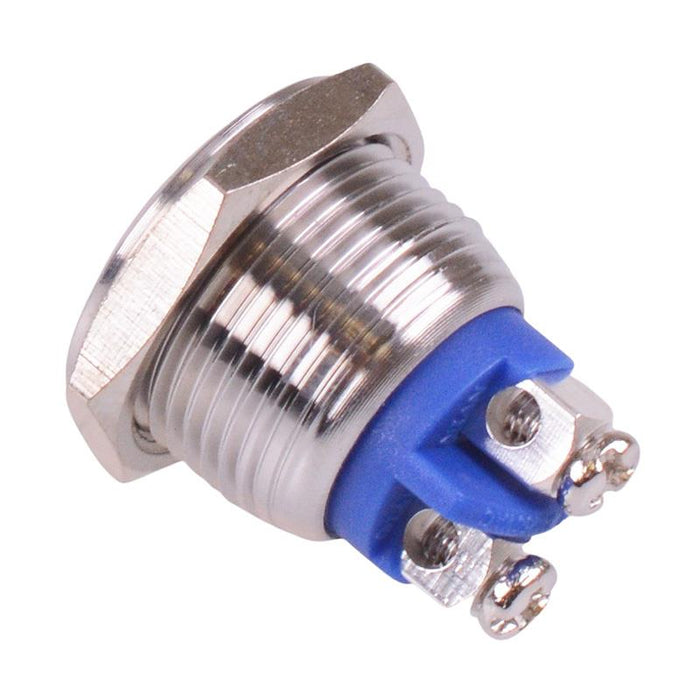

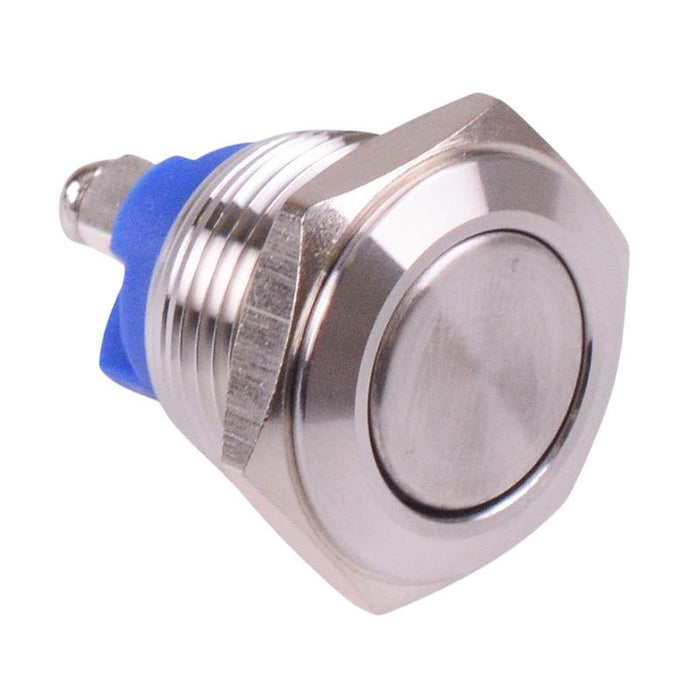

Metal momentary push button switch featuring SPST normally open contacts and screw terminals. The switch requires a 16mm panel cut-out and is suitable for a wide range of applications requiring a reliable low cost switch.

  • Off-(On) momentary operation
  • SPST-NO contacts
  • Screw terminals
  • 16mm panel cut-out
  • Dimensions: 21.9 x 17.8mm (height x diameter)
  • Specification
    Actuation Momentary
    Back Order Lead Time 120 Days
    Contact Configuration SPST
    Contact Rating 2A 36VDC
    Current Rating 2A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -25°C to +65°C
    Panel Cut Out 16mm
    Panel Thickness 5mm Max
    Switch Operation Off-(On)
    Terminal Type Screw
    Voltage Rating 36VDC
