Off-(On) Momentary 16mm Vandal Resistant Push Button Switch SPST
SKU 481608
MPN: 481608
Availability:
77 in stock
Original price
£3.62
-
Original price
£3.62
Original price
£3.62
£3.62
-
£3.62
Current price
£3.62

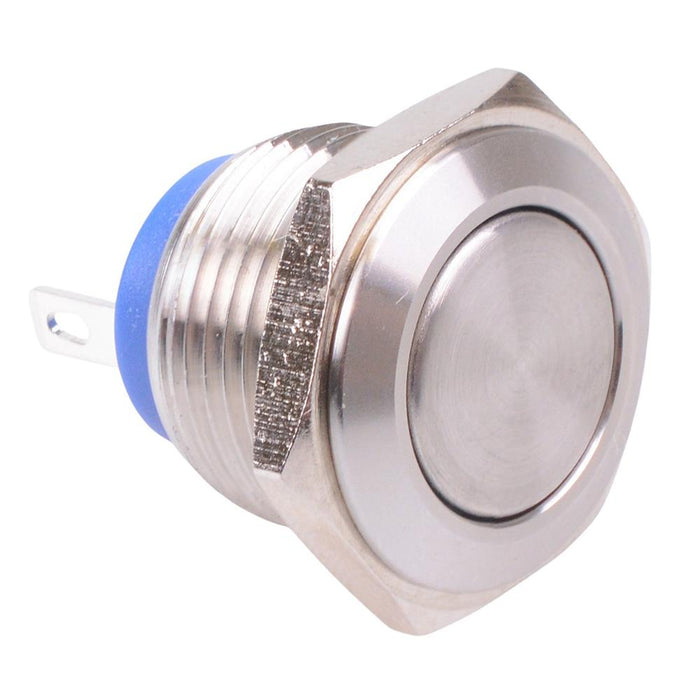

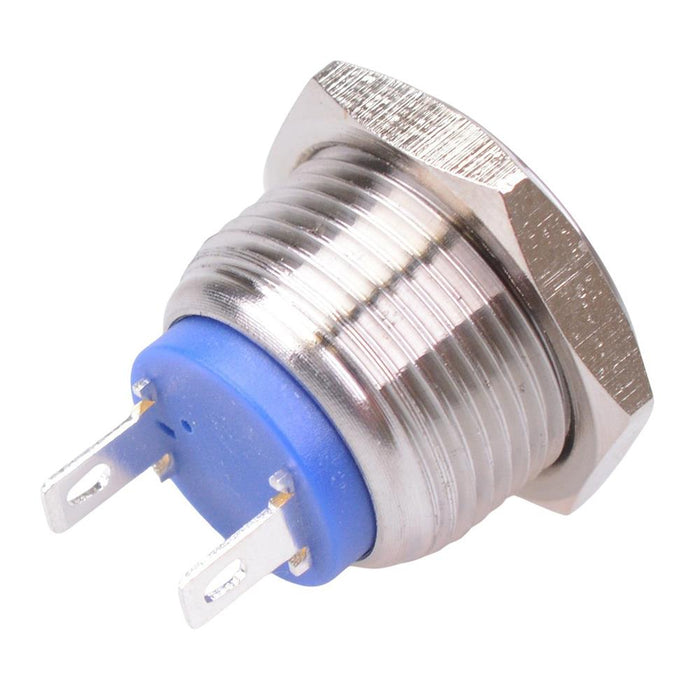

16mm vandal resistant push button switch manufactured from stainless steel, featuring a momentary Off-(On) operating and SPST contacts. The switch features IP67 protection level and is suitable for a wide range of applications.
Off-(On) momentary action SPST contacts IP67 protection rating 16mm panel cut-out diameter Solder terminals Rating: 2A 36VDC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 36VDC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 36VDC |
