Off-(On) Momentary 25mm Push Button Switch DPST 16A 250VAC R13-541A-01-BR
by SCI
SKU 491496
MPN: R13-541A-01-BR
Availability:
11 in stock
Original price
£4.10
-
Original price
£4.10
Original price
£4.10
£4.10
£4.10
-
£4.10
Current price
£4.10

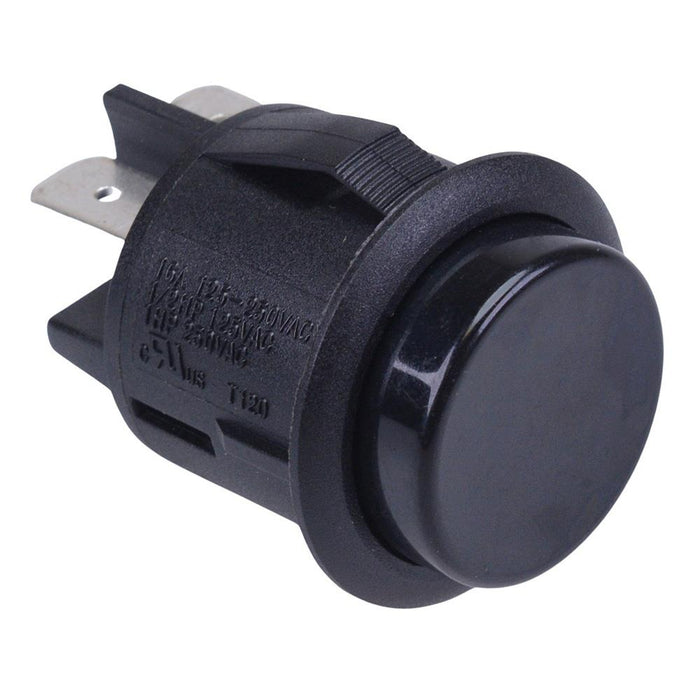

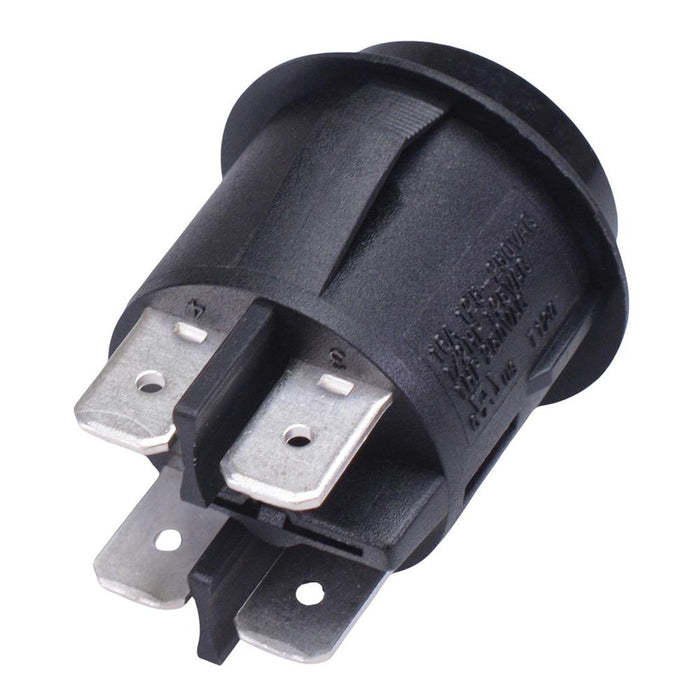

Black R13-541A push button switch featuring a momentary Off-(On) function and DPST contacts. The switch requires a 25mm panel cut-out and is suitable for snap-in mounting. The switch features quick connect terminals and is suitable for a wide range of AC high current applications.
Function: momentary Off-(On) Contacts: DPST Panel cut-out: 25mm Panel thickness: 0.7-5mm Rating: 16A 250VAC 6.3mm quick connect terminals Dimensions: 28 x 34.5mm (diameter x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | DPST |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 25mm |
| Panel Thickness | 0.7-5mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
