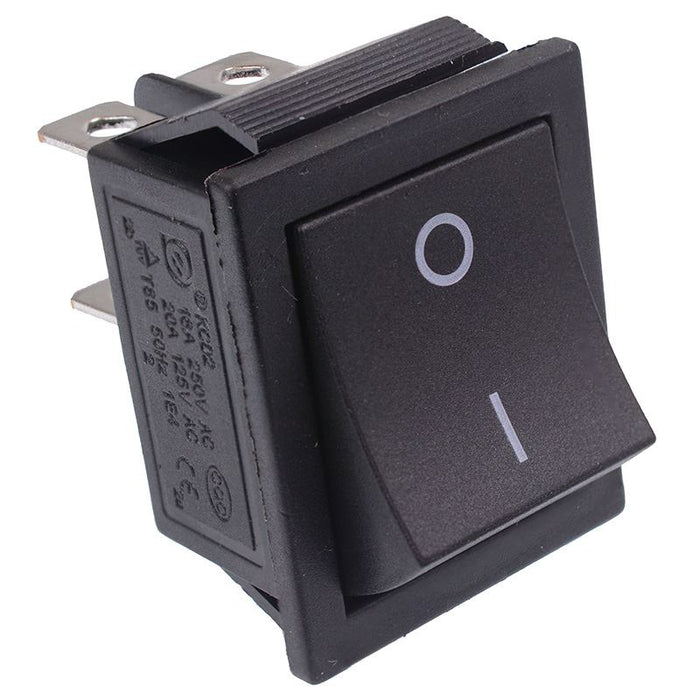

Off-(On) Momentary Rectangle Rocker Switch DPST

SKU 131017

MPN: 131017

Availability:
79 in stock
Original price £0.71 - Original price £0.71
Original price
£0.71 Inc VAT
£0.71 - £0.71
Current price £0.71 Inc VAT
Momentary rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.

  • Off-(On) momentary action
  • DPST contacts
  • 6.3mm quick connect terminals
  • 28.5 x 21mm panel cut-out
  • Maximum current: 15A
  • Maximum voltage: 250VAC
  • Dimensions: 35 x 31.4 x 25mm (Height x Length x Width)
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Contact configuration DPST
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 10,000+ Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 21.5mm
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
