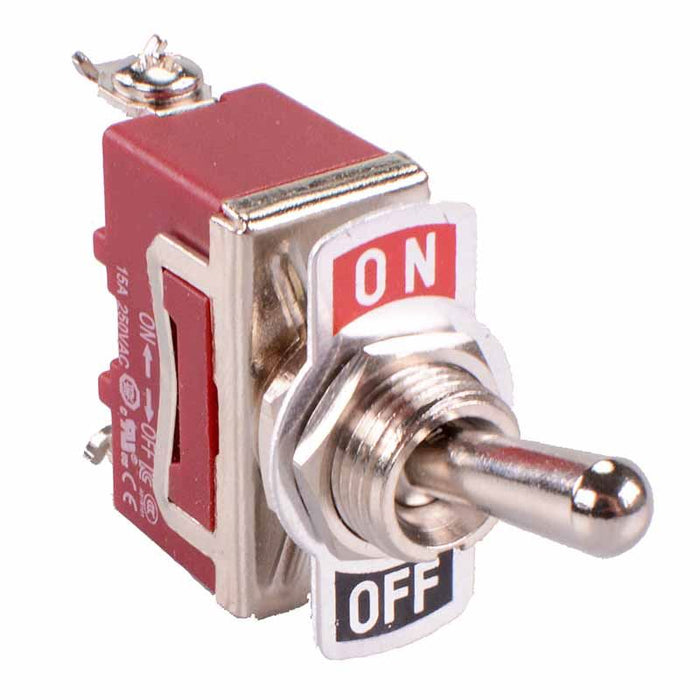

Off-(On) Momentary Toggle Switch Screw Terminals 250V 15A SPST
SKU 482555
MPN: 482555
Availability:
218 in stock
Original price
£1.68
-
Original price
£1.68
Original price
£1.68
£1.68
£1.68
-
£1.68
Current price
£1.68
Off-(On) momentary toggle switch featuring SPST contacts, a reliable mechanism and screw terminals suitable for panel mount applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out Screw terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 56 x 29 x 16mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Protection Level | IP40 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
