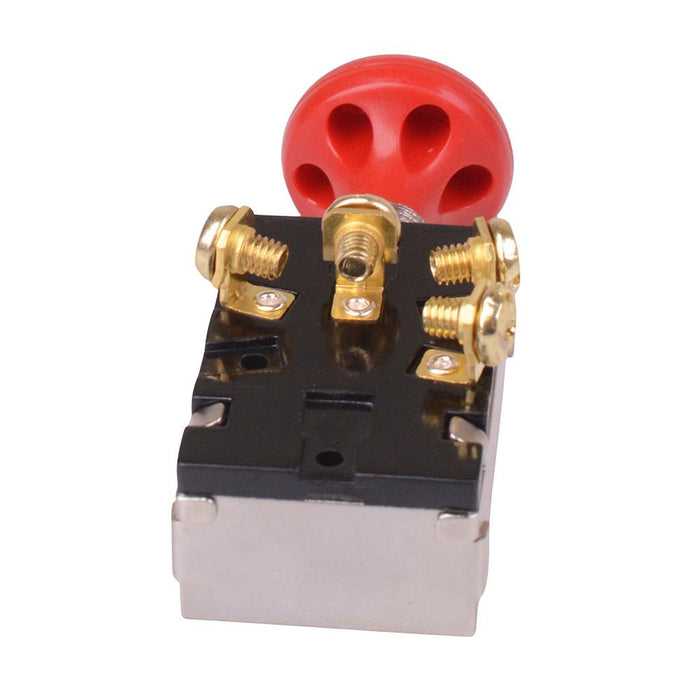

Off-On-On 3 Position Horizontal Push Pull Switch 30A 12V A3-20BA1-07-HR
by SCI
SKU 490884
MPN: A3-20BA1-07-HR
Availability:
122 in stock
Original price
£3.06
-
Original price
£3.06
Original price
£3.06
£3.21
£3.21
-
£3.21
Current price
£3.21
The A3-20BA1-07-HR is a 3 position push-pull switch featuring a horizontal slim package. The switch features screw terminals and requires a 12mm cut-out, suitable for automotive and other applications.
DPDT contacts Off-On-On operation M4 screw terminals 12mm panel cut-out Voltage rating: 12VDC Current rating: 30A Dimensions: 28 x 76.2 x 30mm (height x length x width) SCI A3-20 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | DPDT |
| Contact Rating | 30A 12VDC |
| Current Rating | 30A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Panel Cut Out | 12.2mm |
| Product Series | A3-20 |
| Switch Operation | Off-On-On |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
