Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
SKU 489307
MPN: PBS-28B-3
Availability:
465 in stock
Original price
£3.42
-
Original price
£3.42
Original price
£3.42
£3.42
-
£3.42
Current price
£3.42
Momentary anti vandal push button switch featuring a metal body and screw terminals. The switch features a recessed design and requires a 19mm panel cut-out diameter, suitable for a wide range of applications including automotive.

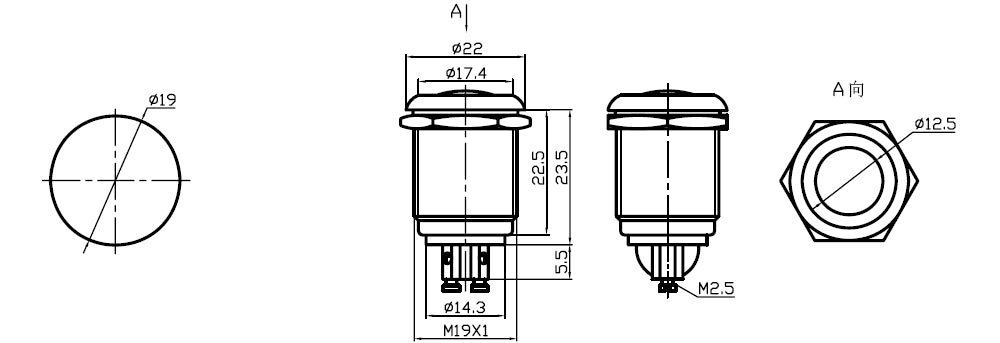

Off-(On) momentary action SPST contacts Rating: 4A 125VAC, 2A 250VAC Metal body Screw terminals Panel cut-out: 19mm Diameter: 22mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 4A 125VAC, 2A 250VAC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19mm |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
