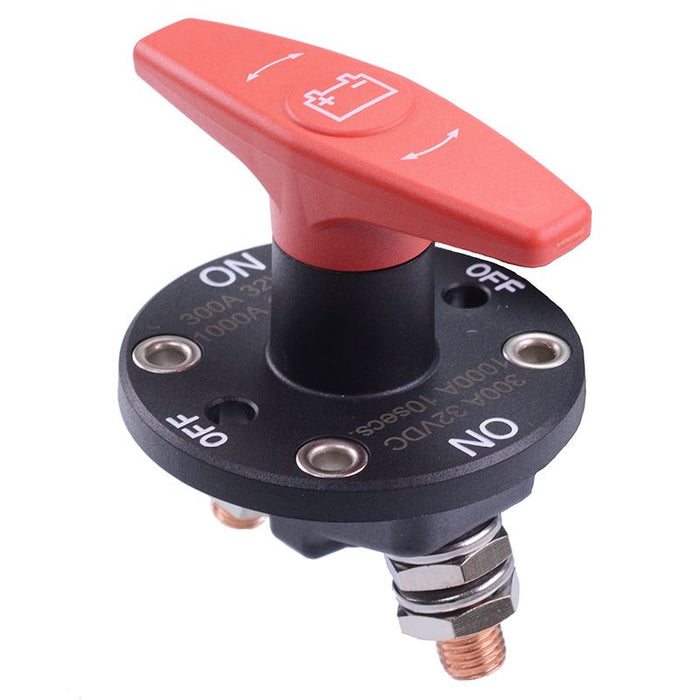

Off-On Waterproof Battery Switch 300A IP67 A23-10
by SCI
SKU 483200
MPN: A23-10
Availability:
347 in stock
Original price
£16.70
-
Original price
£16.70
Original price
£16.70
£16.70
-
£16.70
Current price
£16.70
Off-On battery isolator switch featuring an IP67 protection level and removable actuator. The switch features a 300A 32VDC rating making it ideal for a wide range of 12V and 24V waterproof applications including use with cars, boats, bikes, motorhomes, trucks and caravans.
Off-On action
Removable actuator
SPST contacts
IP67 protection level
Termination: M10 nuts
Continuous rating: 300A 32VDC
Cranking rating: 1000A 10 seconds
Actuator length: 78mm
Dimensions: 85.7 x 67.5mm (Height x Diameter)
]
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Continuous Rating | 300A 32VDC |
| Current Rating | 300A |
| Material | PBT |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +60°C |
| Protection Level | IP67 |
| Switch Operation | Off-On |
| Terminal Type | M10 Studs |
| Voltage Rating | 32VDC |
