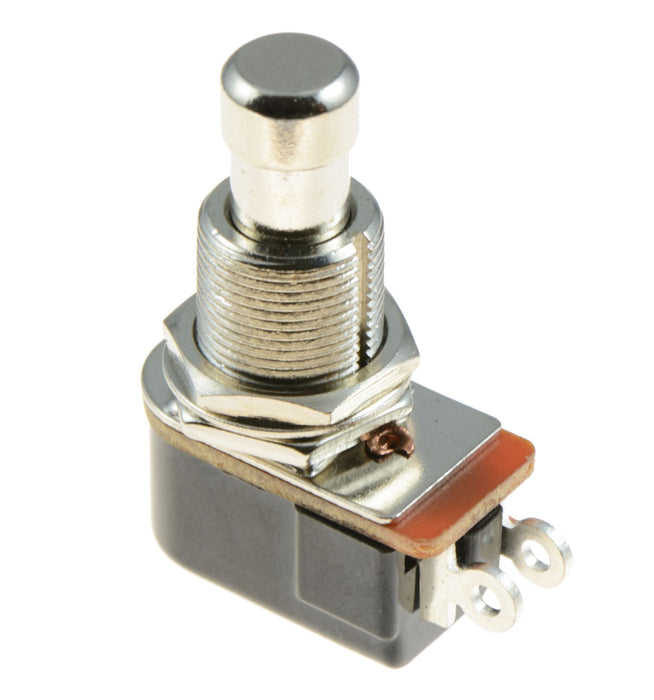

Off(On) Momentary Push Button Foot Switch SPST
SKU 103133
MPN: 103133
Availability:
77 in stock
Original price
£2.51
-
Original price
£2.51
Original price
£2.51
£2.51
£2.51
-
£2.51
Current price
£2.51
Heavy duty footswitch with a momentary operation designed to be operated by foot. The switch has solder lug terminals and is suitable for panel mounting making it ideal for music applications.
SPST contacts Solder lug terminals Requires 12mm panel cut-out Soft touch button 2A maximum current 250VAC maximum voltage Maximum Panel Thickness: 3mm Dimensions: 38.9 x 25.5 x 13mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 2A 250VAC, 4A 125VAC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
