Off(On) Momentary Toggle Flick Switch 15A SPST
SKU 110104
MPN: 110104
Availability:
832 in stock
Original price
£2.15
-
Original price
£2.15
Original price
£2.15
£2.15
-
£2.15
Current price
£2.15

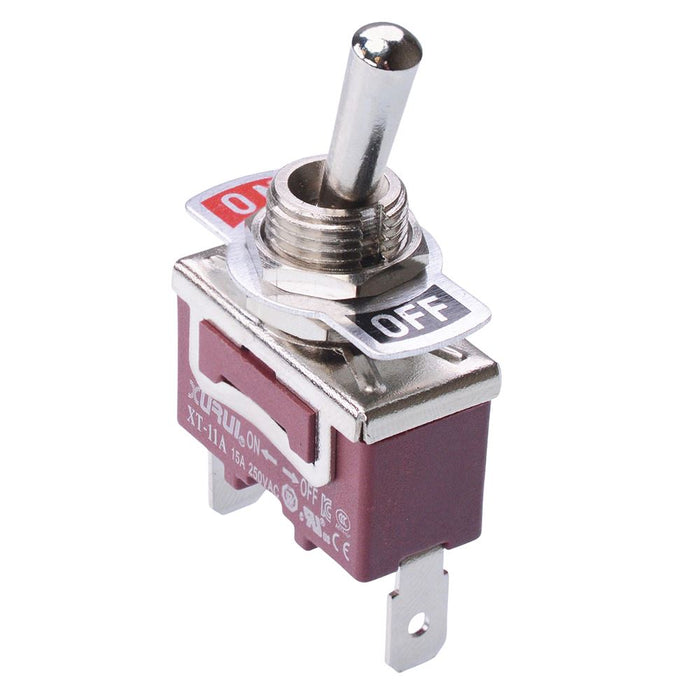

Momentary toggle switch with an Off-(On) action suitable for panel mounting.
Momentary Off-(On) operation SPST contacts 6.3mm quick connect terminals 12mm panel cut-out Secured by nut Maximum Panel Thickness: 5mm Dimensions: 55.5 x 29.6 x 16mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
