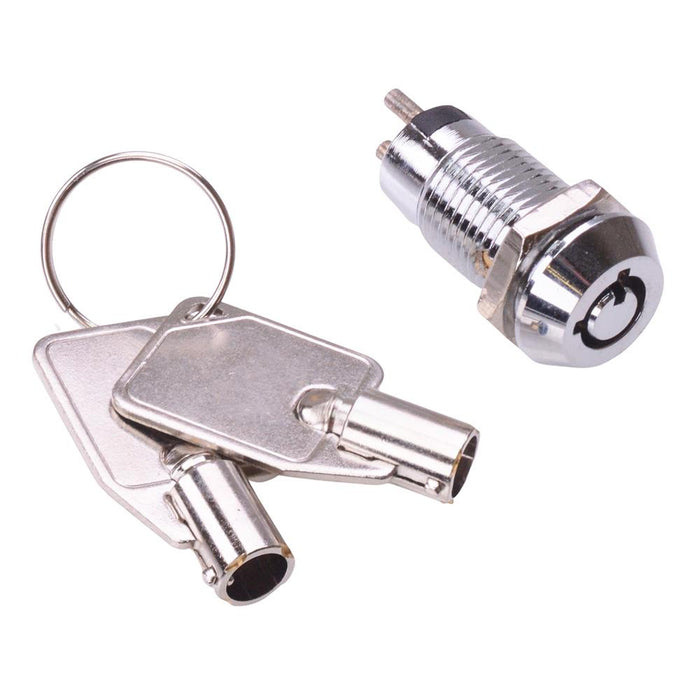

On-Off 12mm Metal Key Switch SPST 1A
by APEM
SKU 487293
MPN: JD3500 KEY ALIKE
Availability:
Out of stock
Sold out
Original price
£3.23
-
Original price
£3.23
Original price
£3.23
£3.39
£3.39
-
£3.39
Current price
£3.39
The IRR8Z252L0Y is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: yellow LED colour: yellow LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: DPDT Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 31.65mm (diameter x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated |
| Contact Rating | 0.5A 250VAC |
| Current Rating | 1A |
| Key Index Angle | 90° |
| Key Withdrawal Position | 1 |
| Material | Chrome Plated Zinc Alloy |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Panel Cut Out | 12mm |
| Protection Level | Silver Plated |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
