On-Off 16mm Metal Key Switch SPST 1A
by APEM
SKU 487371
MPN: 3332
Availability:
375 in stock
Original price
£2.31
-
Original price
£2.31
Original price
£2.31
£2.31
£2.31
-
£2.31
Current price
£2.31

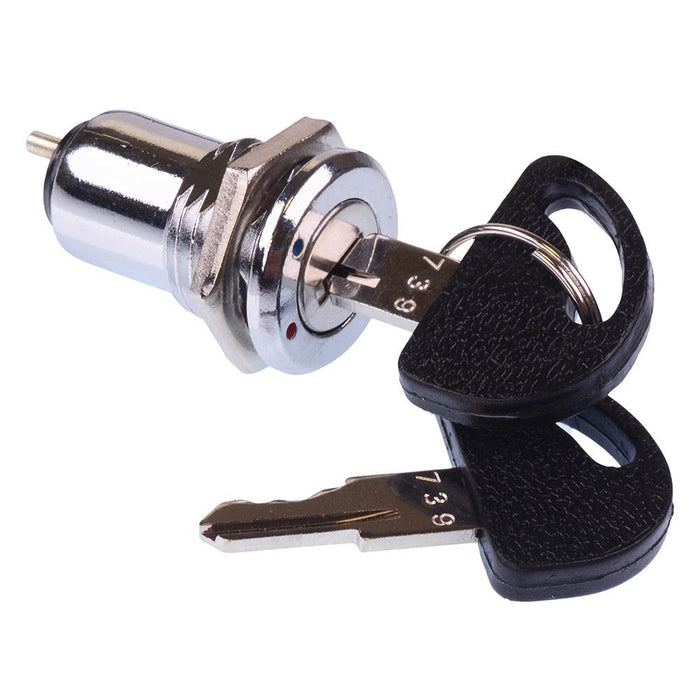

Metal key switch featuring SPST contacts and On-Off function, suitable for panel mounting. The switch features 2 keys removable in both positions and requires a 16mm panel cut-out size.
On-Off function SPST contacts Solder terminals Panel cut-out: 16mm Key removable in both positions Chrome plated zinc alloy housing Rating: 1A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated |
| Contact Rating | 1A 250VAC |
| Current Rating | 1A |
| Key Index Angle | 60° |
| Key Withdrawal Position | 1 & 2 |
| Material | Chrome Plated Zinc Alloy |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Panel Cut Out | 16mm |
| Protection Level | Silver Plated |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
