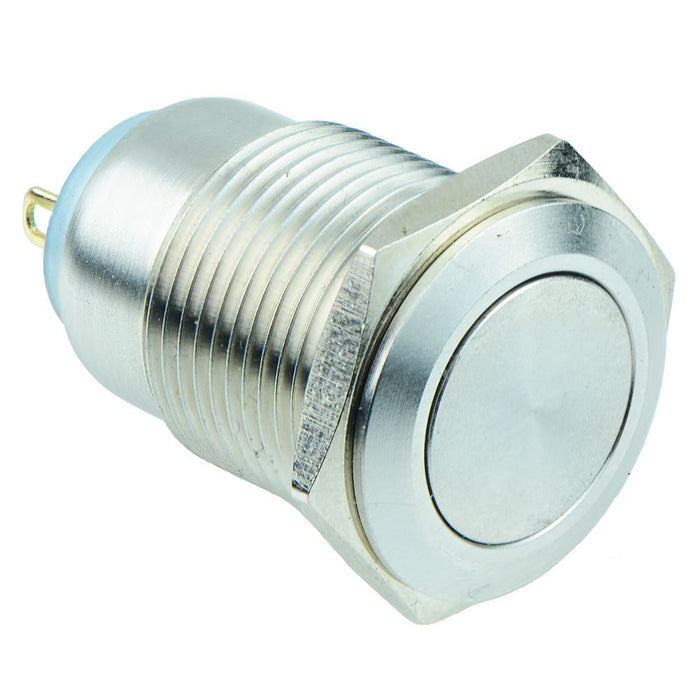

On-Off 16mm Metal Push Button Switch SPST IP67
SKU 120029
MPN: 120029
Availability:
505 in stock
Original price
£5.61
-
Original price
£5.61
Original price
£5.61
Inc VAT
£5.61
-
£5.61
Current price
£5.61
Inc VAT
On-Off metal latching push button switch featuring a reliable mechanism and attractive design suitable for a range of applications including automotive.
On-Off operation SPST configuration IP67 protection level 16mm panel cut-out Maximum current: 3A Maximum voltage: 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Contact configuration | SPST |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 16mm |
| Protection level | IP67 |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 250VAC |
