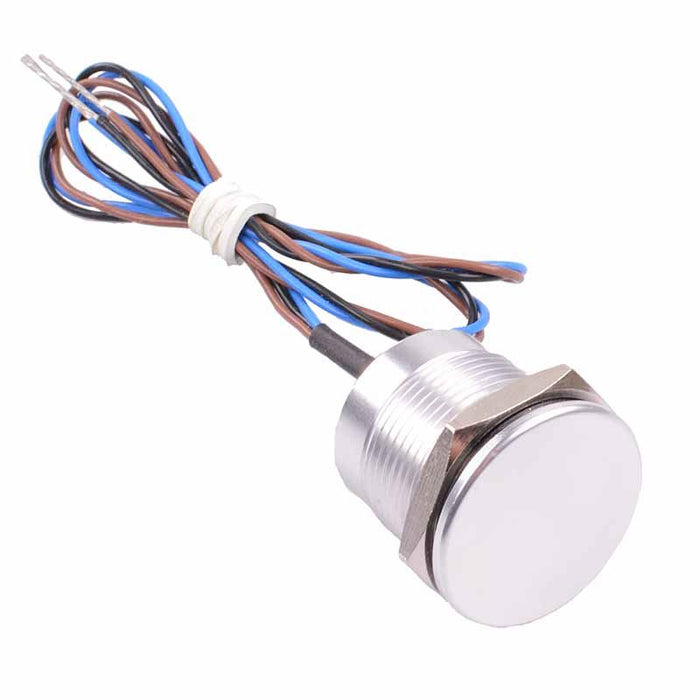

On-Off 19mm Metal Latching Piezo Switch NO SPST
by Langir
SKU 482230
MPN: PZ-19A0F1NOL, height 1.3mm, flat head
Availability:
17 in stock
Original price
£20.52
-
Original price
£20.52
Original price
£20.52
Inc VAT
£20.52
-
£20.52
Current price
£20.52
Inc VAT
Metal latching piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.
NO latching function 19mm panel cut-out diameter 1.3mm height flat operator 22mm diameter head Flying leads Rating: 200mA 24VAC/DC
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | SPST |
| Contact rating | 0.2A 24V |
| Current rating | 0.2A |
| Electrical life | 50,000,000+ Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Illumination voltage | 12VDC |
| Material | Aluminium |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +75°C |
| Panel cut out | 19mm |
| Protection level | IP68 |
| Switch operation | On-Off |
| Terminal type | Flying Leads |
| Voltage rating | 24VAC/DC |
