On-Off 2 Position Panel Mount Battery Isolator Switch 275A 12-48VDC
SKU 491223
MPN: SF50643-1
Availability:
95 in stock
Original price
£10.62
-
Original price
£10.62
Original price
£10.62
£10.62
£10.62
-
£10.62
Current price
£10.62

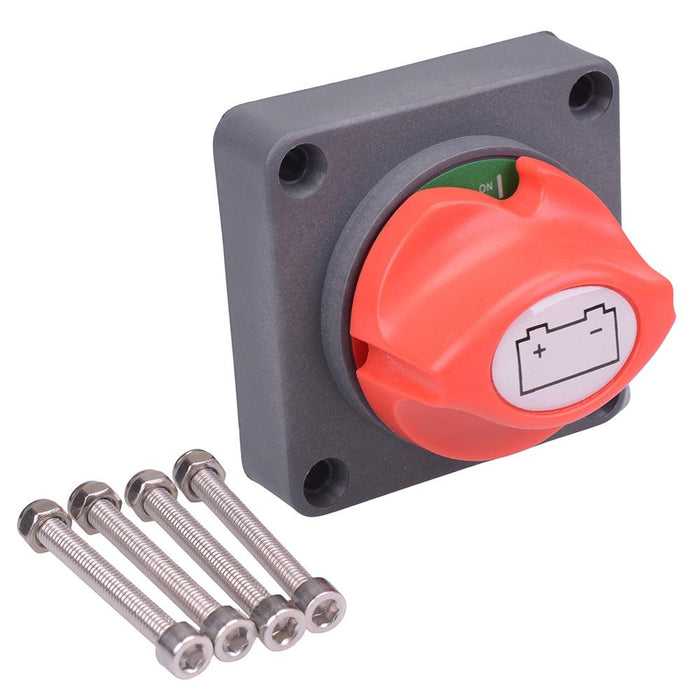

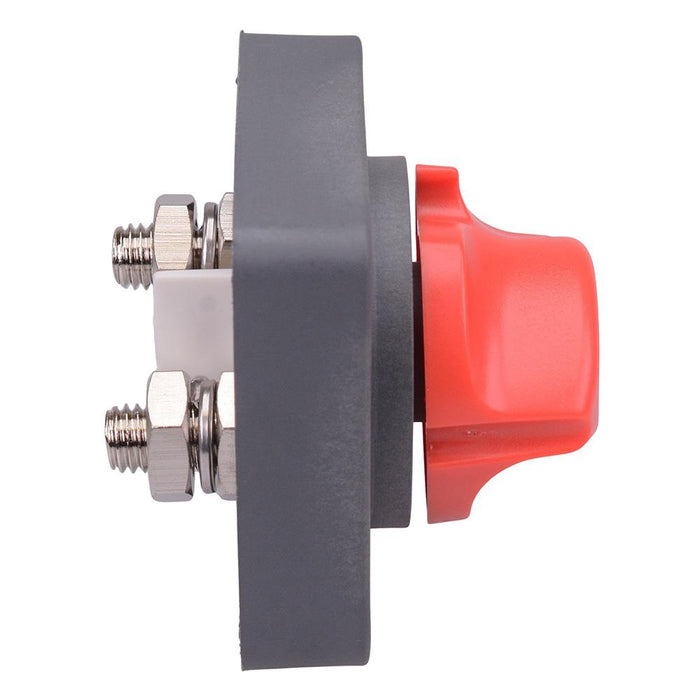

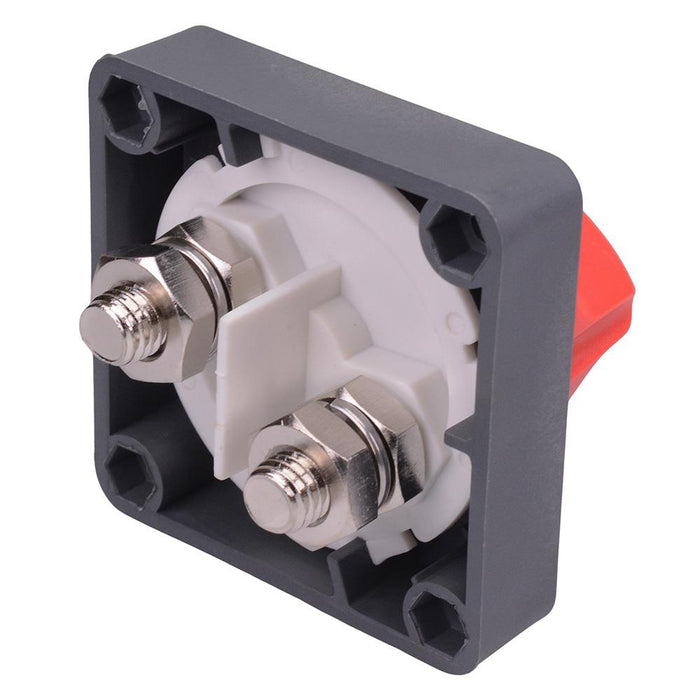

Off-On panel mount battery isolator switch housed in a compact package with low profile design. The switch features M10 stud terminals and is suitable for automotive or marine applications with a continuous current up to 275A.
Function: Off-On Continuous current: 275A Crank current: 1250A Voltage rating: 12-48VDC Stud size: 2*M10 Mounting hole pitch: 55mm Dimensions: 68 x 68 x 68.5mm (width x height x depth) Includes mounting bolts and nuts
Specification
| Back Order Lead Time | 120 Days |
| Continuous Rating | 275A |
| Current Rating | 275A |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Switch Operation | Off-On |
| Terminal Type | M10 Studs |
| Voltage Rating | 48VDC |
