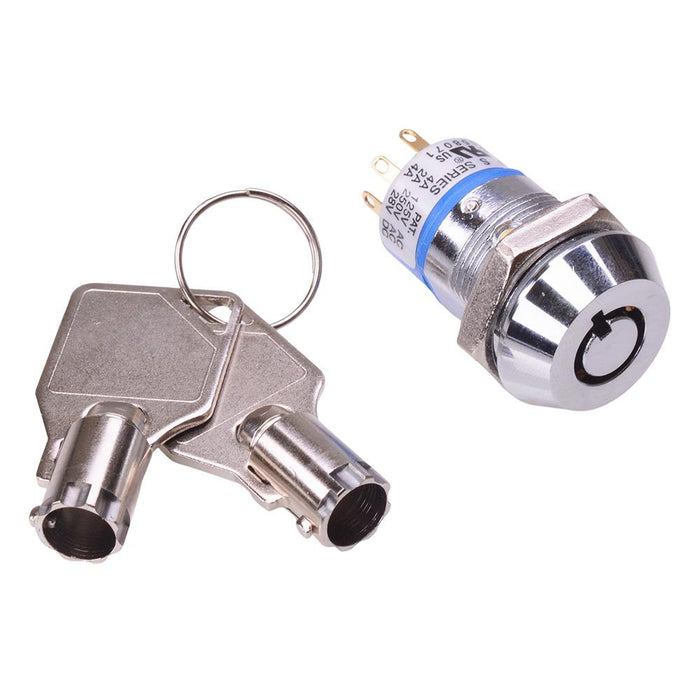

On-Off 2 Way 19mm Key Switch DPST 4A APEM
SKU 487597
MPN: JD7518O-KEY DIFF
Availability:
32 in stock
Original price
£11.85
-
Original price
£11.85
Original price
£11.85
£12.45
£12.45
-
£12.45
Current price
£12.45
The JD7518O is a high quality key operated switch from the JD series. The switch features DPST contacts and 2 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
- 2 positions
- DPST contacts
- Nickel plated finish
- Different keys
- Key withdrawal in position 1
- Panel cut-out: 19mm
- Indexing: 90°
- Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
- Mechanical and electrical life: 6000 cycles at full load
- Dimensions: 28.8 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Nickel Plated |
| Contact Configuration | DPST |
| Contact Material | Gold Plated Copper Alloy |
| Contact Rating | 4A 125VAC / 28VDC, 2A 250VAC |
| Current Rating | 4A @ 125VAC / 28VDC |
| Electrical Life | 6000 Cycles |
| Key Index Angle | 90° |
| Key Withdrawal Position | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 19mm |
| Product Series | JD |
| Protection Level | Gold Plated Copper Alloy |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
