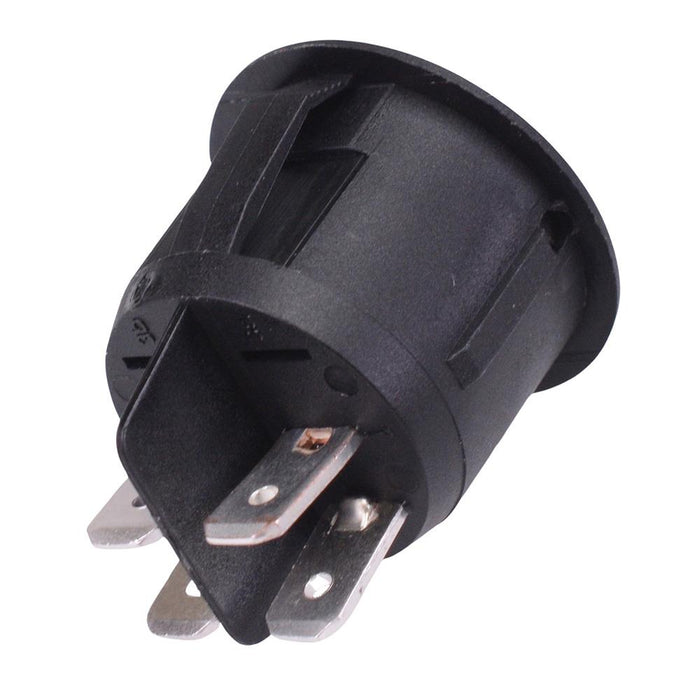

On-Off 20mm Round Rocker Switch SPST 10A 250VAC R13-244A-02
by SCI
SKU 491486
MPN: R13-244A-02
Availability:
19 in stock
Original price
£1.54
-
Original price
£1.54
Original price
£1.54
£1.54
£1.54
-
£1.54
Current price
£1.54
R13-244A-02 circular rocker switch featuring On-Off function and DPST contacts. The switch requires a 20.2mm panel cut-out and features 4.8mm quick connect terminals. The switch is suitable for a wide range of AC applications.
Function: On-Off Contacts: DPST Panel cut-out: 20.2mm Panel thickness: 0.7-3mm Terminals: 4.8mm quick connect Rating: 10A 250VAC, 16A 125VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | DPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
