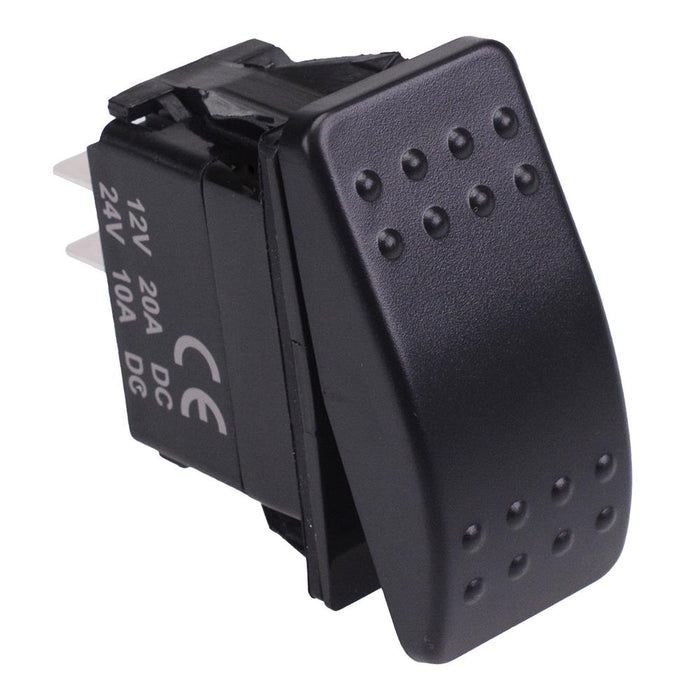

On-Off Automotive Rocker Switch DPST 10A 12-24V IP68
SKU 491890
MPN: CA201D0-HA1
Availability:
195 in stock
Original price
£3.78
-
Original price
£3.78
Original price
£3.78
£3.78
£3.78
-
£3.78
Current price
£3.78
On-Off function rocker switch featuring DPST contacts and 6.3mm quick connect terminals. The switch features IP68 protection rating and fits standard automotive 37x21mm panel cut-outs. The switch is suitable for a wide range of 12V/24V applications including autmotive and marine.
Function: On-Off Contacts: DPST Protection rating: IP68 Panel cut-out: 37x21mm Panel thickness: 1-4.9mm Rating: 10A 24VDC, 20A 12VDC, 10A 250VAC, 15A 125VAC Dimensions: 51.8 x 49.5 x 24.5mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPST |
| Contact Material | Silver Plated Brass |
| Contact Rating | 10A 24VDC, 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 37 x 21mm |
| Panel Thickness | 1-4.9mm |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC / 250VAC |
