On-Off Black 16mm Rocker Switch 10A SPST R13-228A
by SCI
SKU 490822
MPN: R13-228A
Availability:
465 in stock
Original price
£1.94
-
Original price
£1.94
Original price
£1.94
£1.94
£1.94
-
£1.94
Current price
£1.94

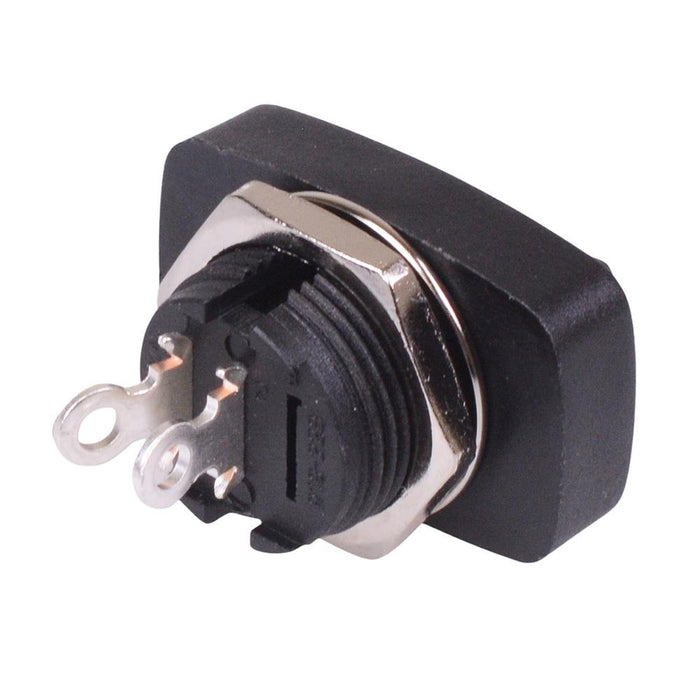

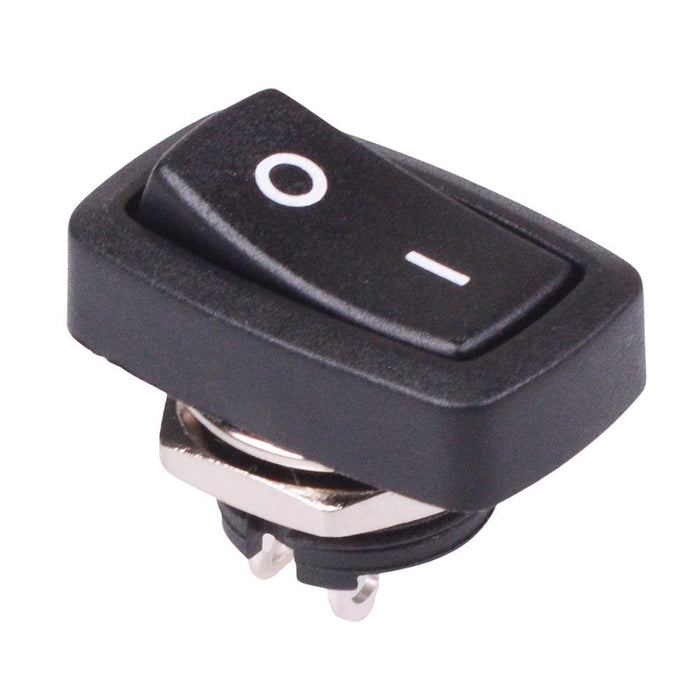

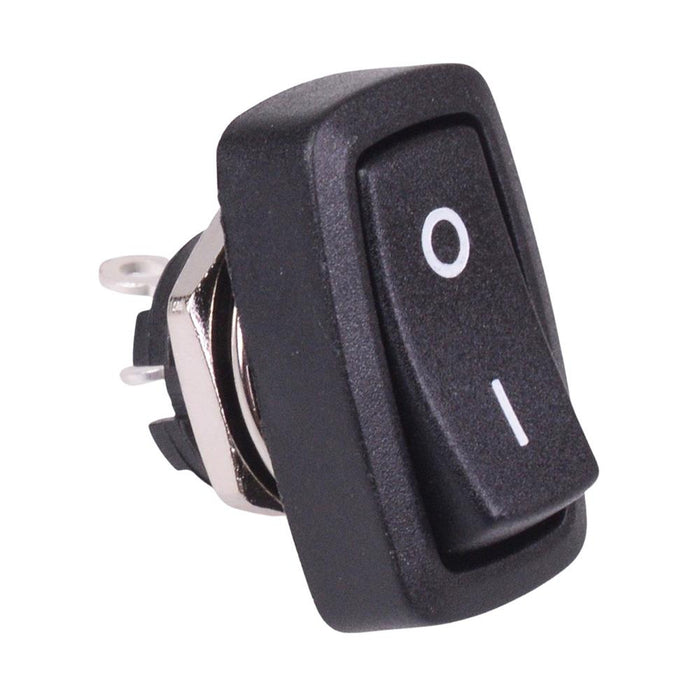

The R13-228A is a oblong shaped rocker switch with On-Off operation, requiring a 16mm panel cut-out. The switch features SPST contacts and solder terminals, suitable for a wide range of applications.
On-Off operation Contacts: SPST Panel cut-out: 16mm Rating: 10A 125VAC, 6A 250VAC Terminals: solder Dimensions: 28 x 28.8 x 18mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 10A 125VAC, 6A 250VAC |
| Current Rating | 10A @ 125VAC |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 16mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
