On-Off Black Paddle Toggle Switch SPST 20A 12V
SKU 485597
MPN: 485597
Availability:
Out of stock
Sold out
Original price
£0.87
-
Original price
£0.87
Original price
£0.87
Inc VAT
£0.87
-
£0.87
Current price
£0.87
Inc VAT

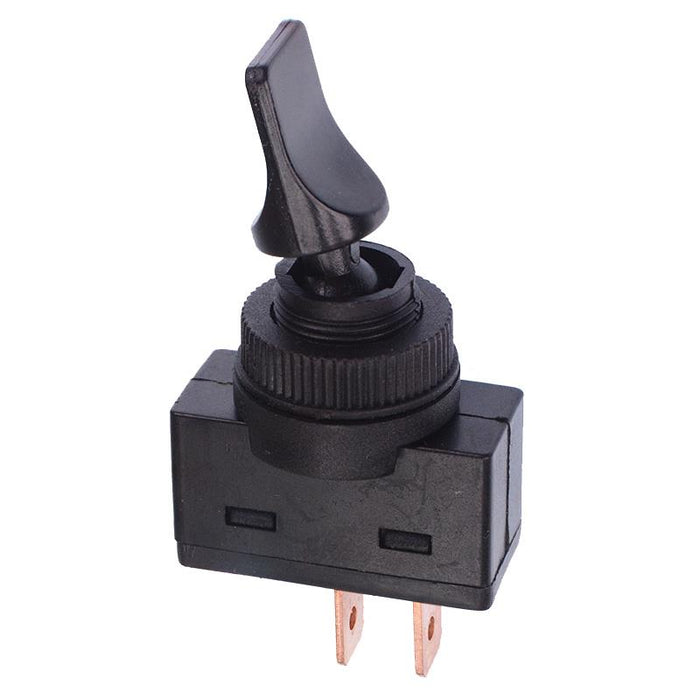

Black low cost toggle switch featuring a On-Off action and SPST contacts. The switch features quick connect terminals and requires a 12mm panel cut-out, suitable for automotive applications.
On-Off action SPST contacts 12mm panel cut-out 6.3mm quick connect terminals 20A 12VDC rating Dimensions: 54 x 26.2 x 12mm (height x width x depth)
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
