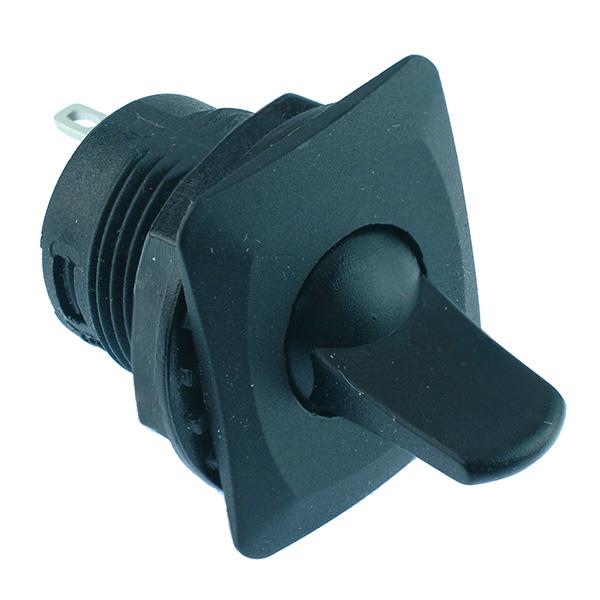

On-Off Black Panel Mount Toggle Switch SPST R13-402A
by SCI
SKU 481944
MPN: R13-402A
Availability:
492 in stock
Original price
£1.09
-
Original price
£1.09
Original price
£1.09
£1.09
-
£1.09
Current price
£1.09
Low cost on-off toggle switch featuring SPST contacts and flanged surround suitable for panel mount applications.
On-Off operation SPST contacts Panel cut-out: 13.6mm Rating: 3A 250VAC, 6A 125VAC Solder contacts Dimensions: 34 x 21 x 21mm (Length x Width x Depth)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC, 6A 125VAC |
| Current Rating | 6A |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 15mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
