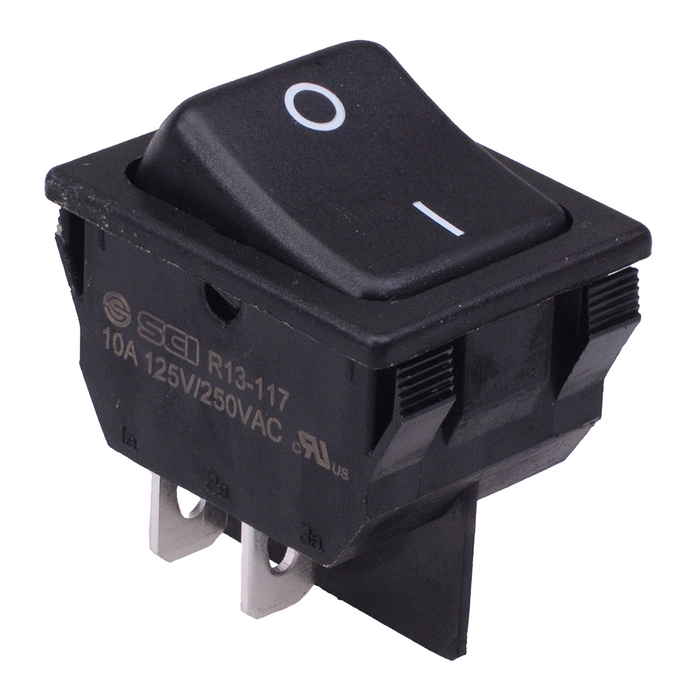

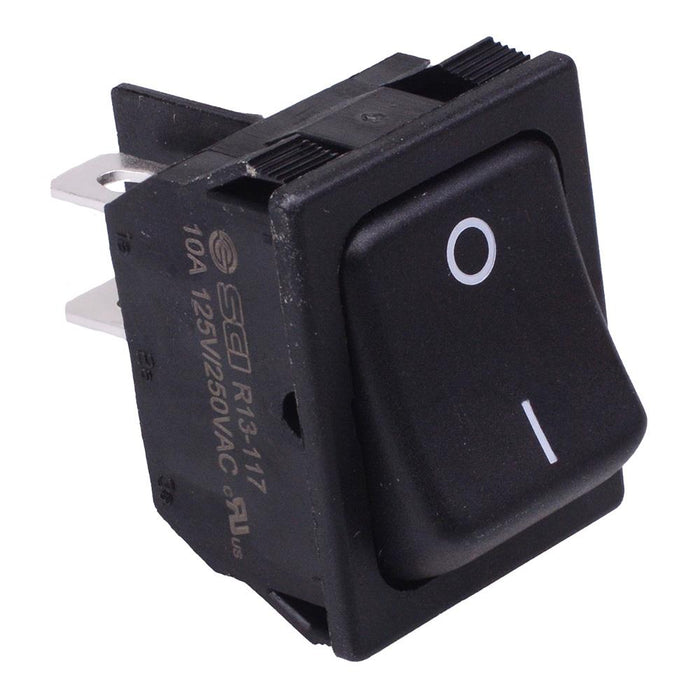

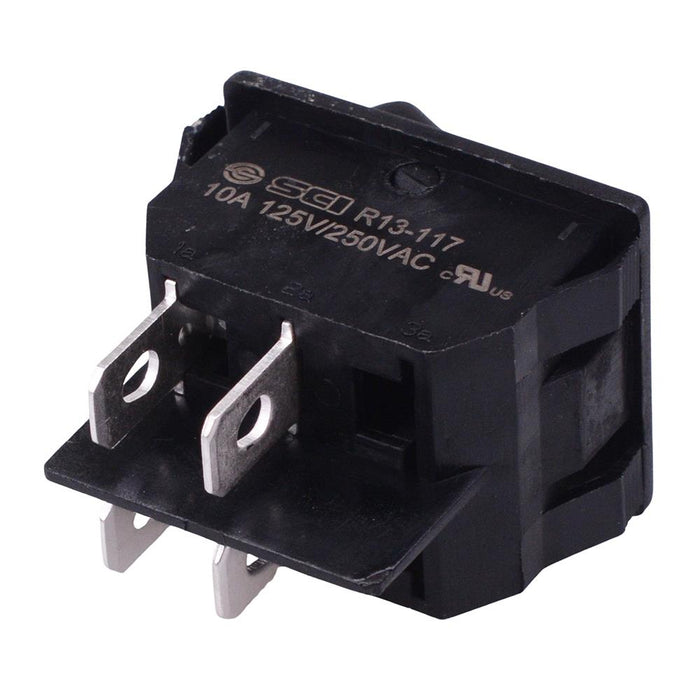

On-Off Black Rectangle Rocker Switch DPST 10A R13-117A-01
by SCI
SKU 491500
MPN: R13-117A-01-BB-2D
Availability:
20 in stock
Original price
£1.83
-
Original price
£1.83
Original price
£1.83
£1.92
£1.92
-
£1.92
Current price
£1.92
R13-117A rectangle rocker switch featuring DPST contacts and On-Off function. The switch requires a 30.2x22.2mm panel cut-out and features quick connect 6.3mm terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications including appliances and industrial.
Function: On-Off Contacts: DPST Panel cut-out: 30.2 x 22.2mm Panel thickness: 0.75-3mm Rating: 10A 250VAC, 16A 125VAC 6.3mm quick connect terminals Dimensions: 36.3 x 25.2 x 31.5mm (height x width x length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Configuration | DPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 30.2 x 22.2mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
