On-Off Black Round 20mm Rocker Switch 16A SPST R13-112A-02
by SCI
SKU 490824
MPN: R13-112A-02
Availability:
644 in stock
Original price
£0.82
-
Original price
£0.82
Original price
£0.82
£0.82
£0.82
-
£0.82
Current price
£0.82

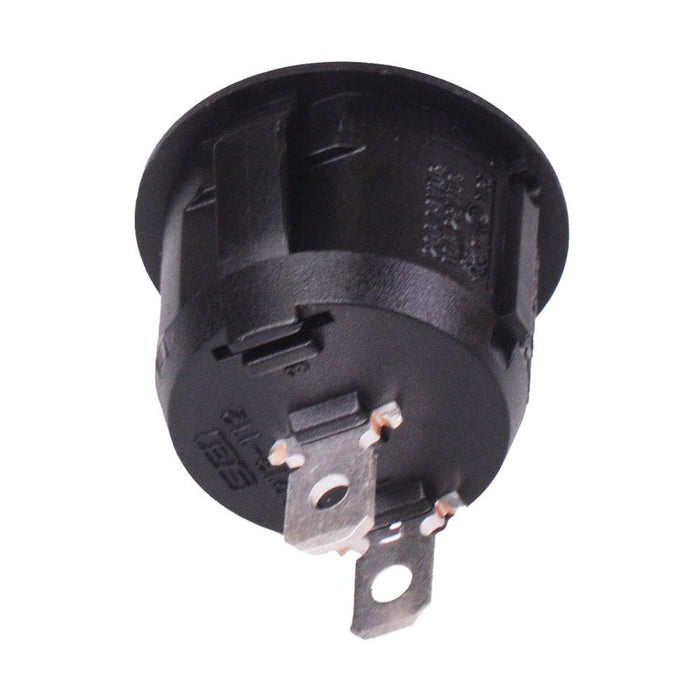

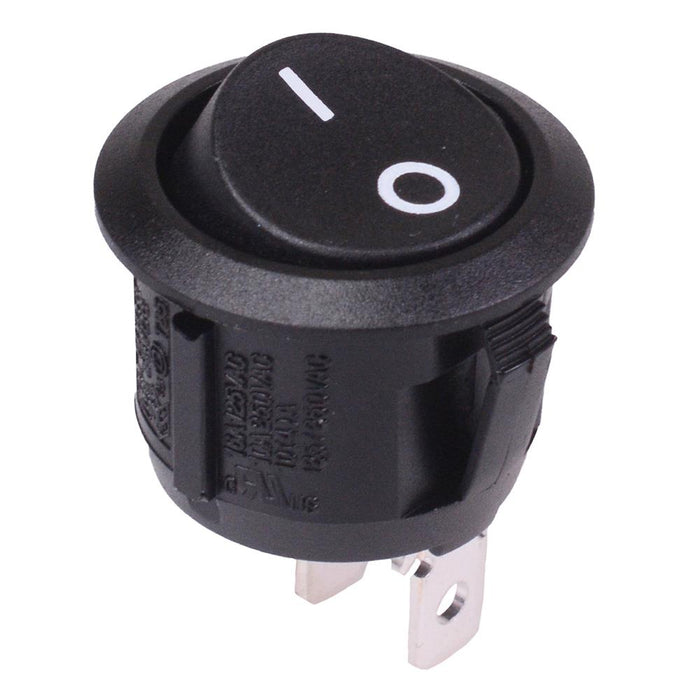

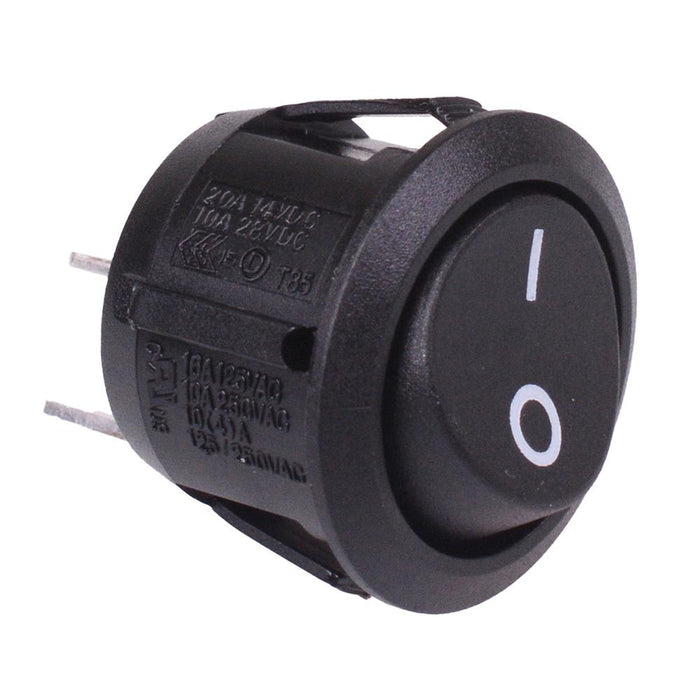

The R13-112A-02 is an On-Off rocker switch in a 20mm circular package with white markings. The switch features SPST contacts and quick connect terminals, suited for applications including automotive, industrial, appliances etc.
On-Off operation Contacts: SPST Panel cut-out: 20.2mm Rating: 16A 125VAC, 10A 250VAC, 10A 28VDC, 20A 14VDC Terminals: 4.8mm quick connect Dimensions: 28.3 x 23mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A @ 125VAC |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
