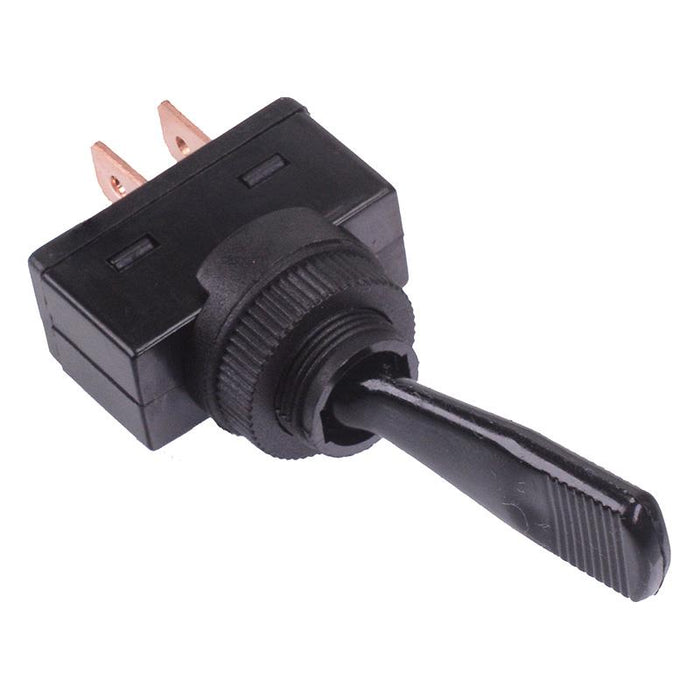

On-Off Black Toggle Flick Switch SPST 20A 12VDC
SKU 482225
MPN: 482225
Availability:
Out of stock
Sold out
Original price
£0.89
-
Original price
£0.89
Original price
£0.89
£0.89
-
£0.89
Current price
£0.89
On-Off flick toggle switch featuring a large actuator and quick connect terminals, suitable for panel mount applications including automotive.
On-Off action SPST contacts Panel cut-out: 12mm 6.3mm quick connect terminals Rating: 20A 12VDC Actuator dimensions: 27 x 11.2mm (height x width) Dimensions: 62 x 26.2 x (height x length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
