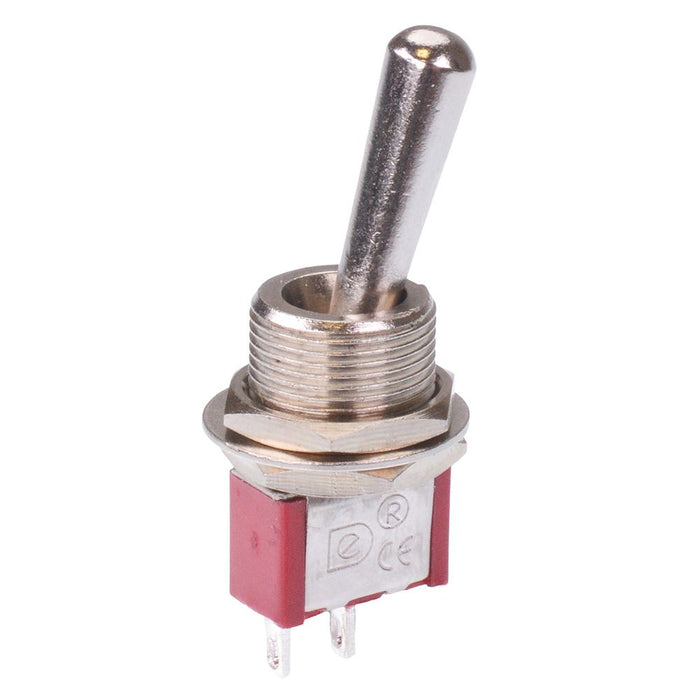

On-Off Large Handle 12mm Mini Toggle Switch SPST 3A 250V
SKU 486894
MPN: 486894
Availability:
740 in stock
Original price
£1.36
-
Original price
£1.36
Original price
£1.36
£1.36
£1.36
-
£1.36
Current price
£1.36
On-Off miniature toggle switch featuring SPST contacts and large actuator. The switch features solder terminals and is rated up to 3A 250V, making it suitable for low power applications.
On-Off operation SPST contacts 12mm panel cut-out Rating: 3A 250VAC, 6A 125VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 6,000+ Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
