On-Off Latching 12mm Flat Push Button Switch Stainless Steel IP65
SKU 490263
MPN: HBGQ12F-10Z/J/S
Availability:
95 in stock
Original price
£4.94
-
Original price
£4.94
Original price
£4.94
£4.94
£4.94
-
£4.94
Current price
£4.94

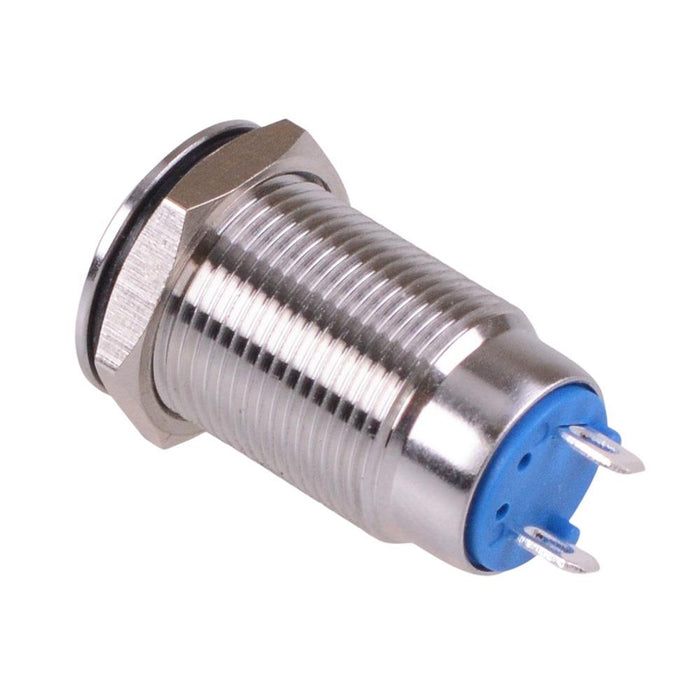

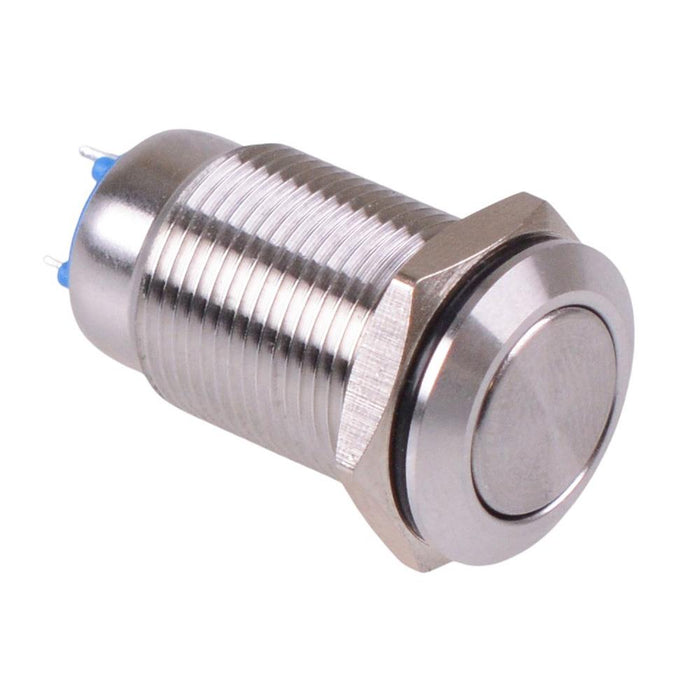

Latching push button switch featuring SPST contacts and stainless steel housing with a flat button. The switch featuring IP65 protection rating and solder/quick connect terminals, suitable for a wide range of applications including control panels, automotive, appliances, industrial etc.
Off-On operation SPST contacts Stainless steel housing 2.8x0.5mm solder / quick connect terminals IP65 protection rating Rating: 2A 250V Panel thickness: 14mm max Panel cut-out: 12mm Dimensions: 25.95 x 13.8mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 250VAC |
| Current Rating | 2A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 14mm Max |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
