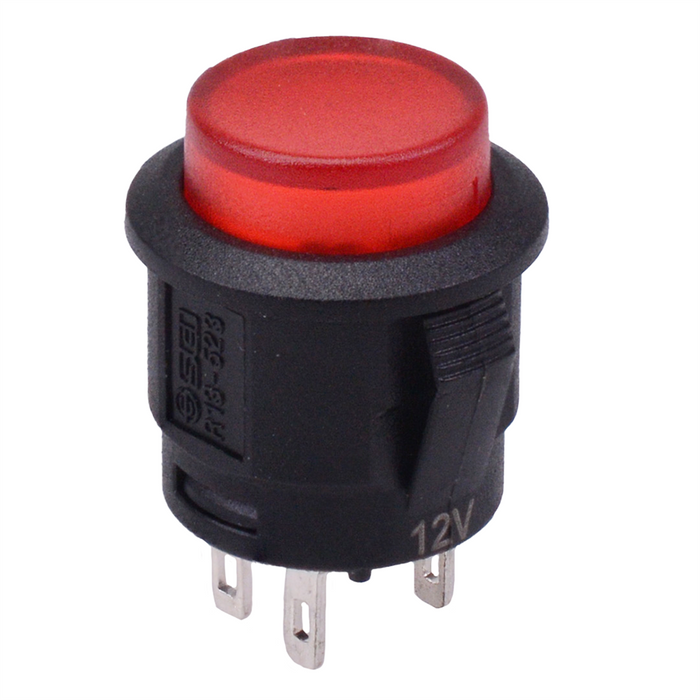

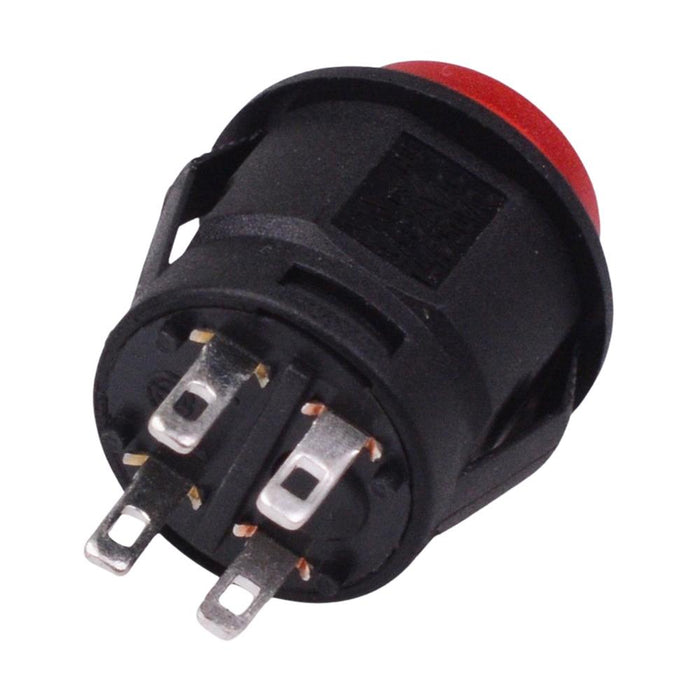

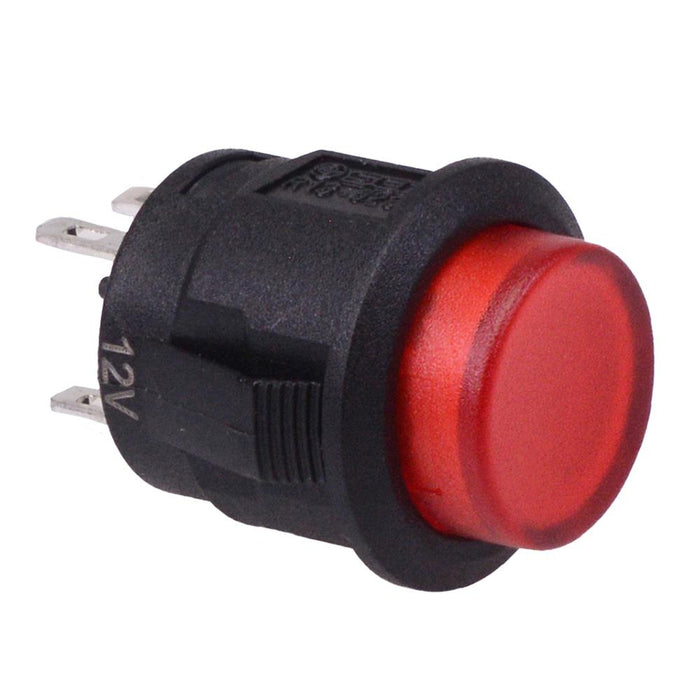

On-Off Latching Red 12V LED 16mm Push Button Switch SPST R13-523BL-05
by SCI
SKU 491494
MPN: R13-523BL-05-BR-L-1
Availability:
20 in stock
Original price
£1.83
-
Original price
£1.83
Original price
£1.83
£1.92
£1.92
-
£1.92
Current price
£1.92
Red 12V illuminated R13-523BL-05 push button switch featuring a latching On-Off function and SPST contacts. The switch features an LED lamp and requires a 16mm panel cut-out. The switch features solder terminals and is suitable for a wide range of DC applications.
Function: latching On-Off Contacts: SPST Red LED illuminated voltage: 12VDC Panel cut-out: 16mm Panel thickness: 3mm max Rating: 1.5A 250VAC, 3A 125VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 16mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
