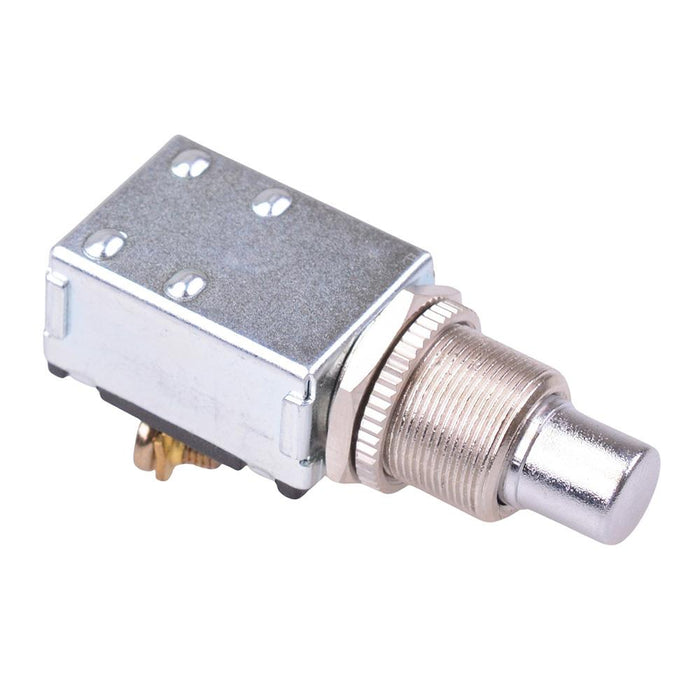

On-(Off) Normally Closed Momentary 16mm Push Button Switch 30A 12VDC A3-27B-07
by SCI
SKU 491427
MPN: A3-27B-07
Availability:
Only 5 left!
Original price
£2.64
-
Original price
£2.64
Original price
£2.64
£2.64
£2.64
-
£2.64
Current price
£2.64

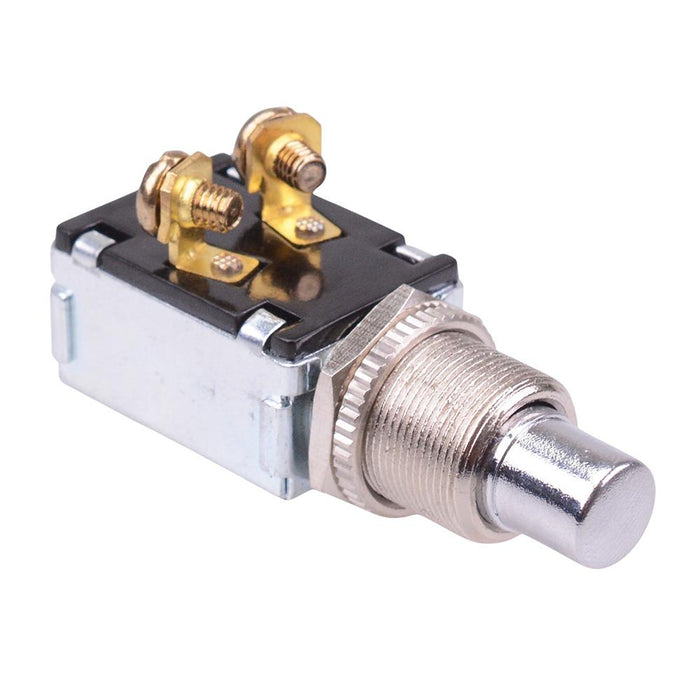

The A3-27B-07 is a metal push button switch featuring 30A 12VDC rating and normally closed SPST contacts. The switch features On-(Off) function and requires a 16mm panel cut-out. The high current rating makes the switch suitable for a wide range of 12V applications including automotive.
On-(Off) momentary function SPST-NC contacts Rating: 30A 12VDC Panel cut-out: 16mm Terminals: M4*0.7 Dimensions: 59.5 x 23 x 25.6mm (length x width x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Rating | 30A 12VDC |
| Current Rating | 30A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 10mm Max |
| Switch Operation | On-(Off) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
