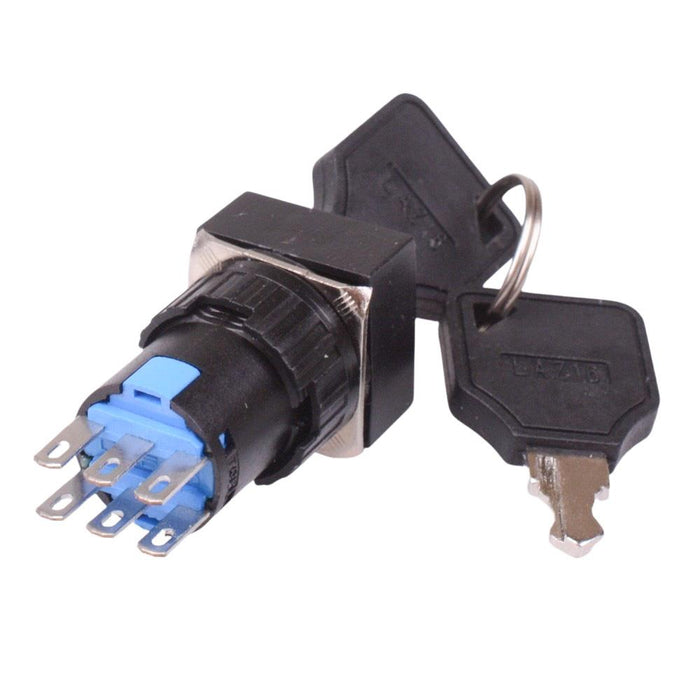

On-Off-On 3 Position 16mm Latching Key Switch 2NO/2NC 3A 250V
SKU 489714
MPN: FL6-074 On-Off-On
Availability:
41 in stock
Original price
£3.21
-
Original price
£3.21
Original price
£3.21
£3.21
-
£3.21
Current price
£3.21

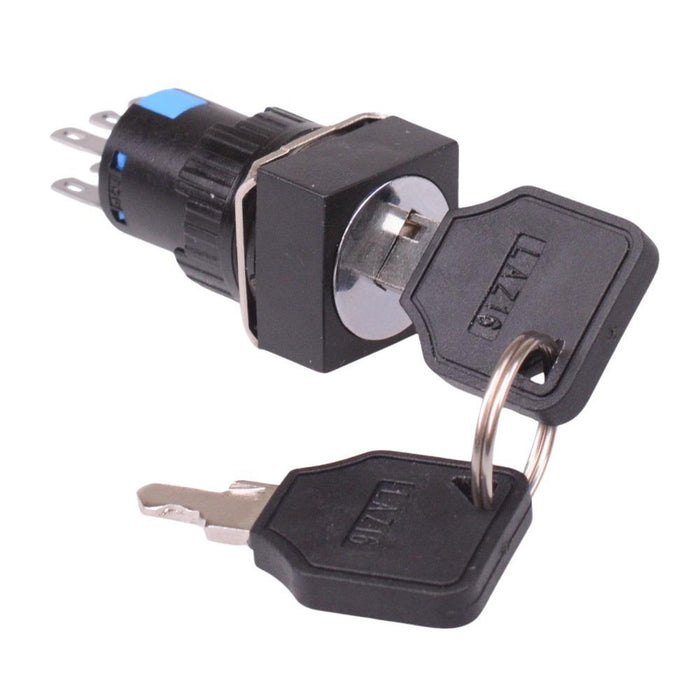

3 position square latching industrial key switch featuring DPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses.
Latching operation 3 positions, 45° each turn Key removable in all positions 2NO/2NC DPDT contacts Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm 2.8x0.5mm solder/quick-connect terminals Dimensions: 39 x 17 x 17mm (height x width x length)
Specification
Actuation | Latching |
Back Order Lead Time | 30 Days |
Colour | Black |
Contact Configuration | SPDT |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Electrical Life | 10,000 Cycles |
Illuminated | No |
Key Index Angle | 45° |
Key Withdrawal Position | 1, 2 & 3 |
MOQ | 1 |
Mounting Style | Panel Mount |
Number of Positions | 3 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 16mm |
Terminal Type | Quick connect |
Voltage Rating | 250VAC |
