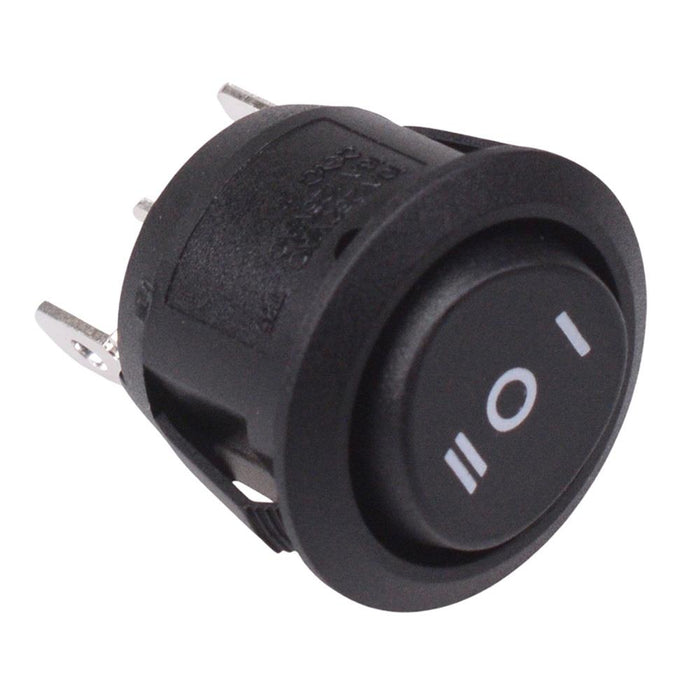

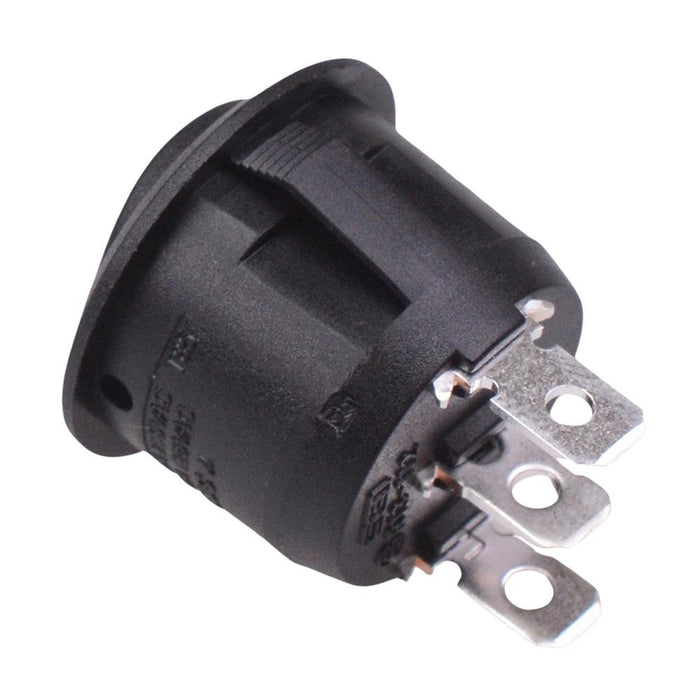

On-Off-On Black Round Rocker Switch SPDT R13-112D-02
by SCI
SKU 489283
MPN: R13-112D-02
Availability:
1573 in stock
Original price
£1.53
-
Original price
£1.53
Original price
£1.53
£1.53
£1.53
-
£1.53
Current price
£1.53
R13-112D-02 circular rocker switch featuring SPDT contacts and 4.8mm quick connect terminals. The switch requires a 20mm panel cut-out and is suitable for a wide range of applications including automotive.
SPDT contacts On-Off-On operation 20.2mm panel cut-out Snap-in mounting 4.8mm quick connect terminals Rating: 10A 250VAC, 16A 125VAC R13-112 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Rating | 10A 250VAC, 16A 125VAC |
| Current Rating | 16A |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-3mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
