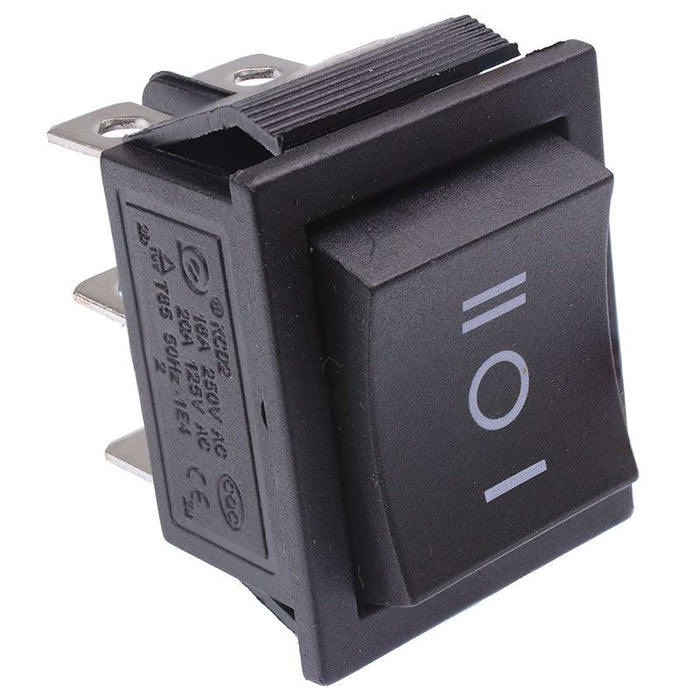

On-Off-On Large Rectangle Rocker Switch DPDT
SKU 131009
MPN: 131009
Availability:
801 in stock
Original price
£0.73
-
Original price
£0.73
Original price
£0.73
Inc VAT
£0.73
-
£0.73
Current price
£0.73
Inc VAT
Rectangle rocker switch with DPDT contacts suitable for applications where a higher rated switch is required.
On-off-on action DPDT contacts 6.3mm quick connect terminals 28 x 21.5mm panel cut-out Maximum current: 16A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Contact configuration | DPDT |
| Contact rating | 16A 250VAC |
| Current rating | 16A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 28.5 x 21.5mm |
| Switch operation | On-Off-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
