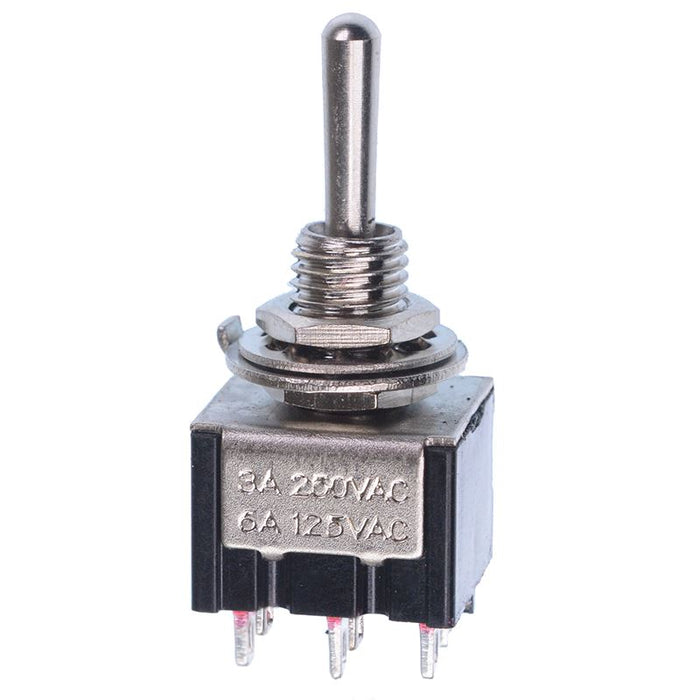

(On)-Off-(On) Mini Toggle Switch DPDT

SKU 112026

MPN: 112026

Availability:
881 in stock
Original price £0.98 - Original price £0.98
Original price
£0.98 Inc VAT
£0.98 - £0.98
Current price £0.98 Inc VAT
Miniature size toggle switches with a momentary action suitable for a wide range of applications.

  • (On)-Off-(On) action
  • DPDT contacts
  • Switch returns to the center when released
  • 6mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Rating: 3A 250VAC, 6A 125VAC
  • Dimensions: 3.3 x 13.2 x 12.7mm (Height x Width x Length)
  • Maximum Panel Thickness: 3mm
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Contact configuration DPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 6mm
    Switch operation (On)-Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
