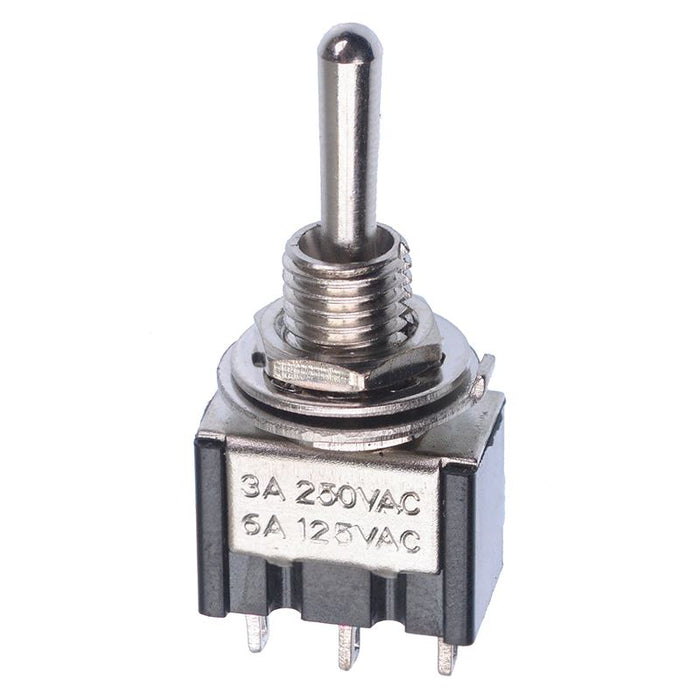

On-Off-(On) Miniature Toggle Switch SPDT
SKU 112013
MPN: 112013
Availability:
1746 in stock, ready to be shipped
Original price
£0.76
-
Original price
£0.76
Original price
£0.76
Inc VAT
£0.76
-
£0.76
Current price
£0.76
Inc VAT
Miniature size toggle switches with 3 positions suitable for a wide range of applications including model railway.
On-Off-(On) action SPDT contacts 6mm panel cut-out Solder terminals Secured with nut Rating: 3A 250VAC, 6A 125VAC
Specification
| Actuation | Latching / Momentary |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC, 6A 125VAC |
| Current rating | 6A @ 125VAC |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 6mm |
| Switch operation | On-Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
