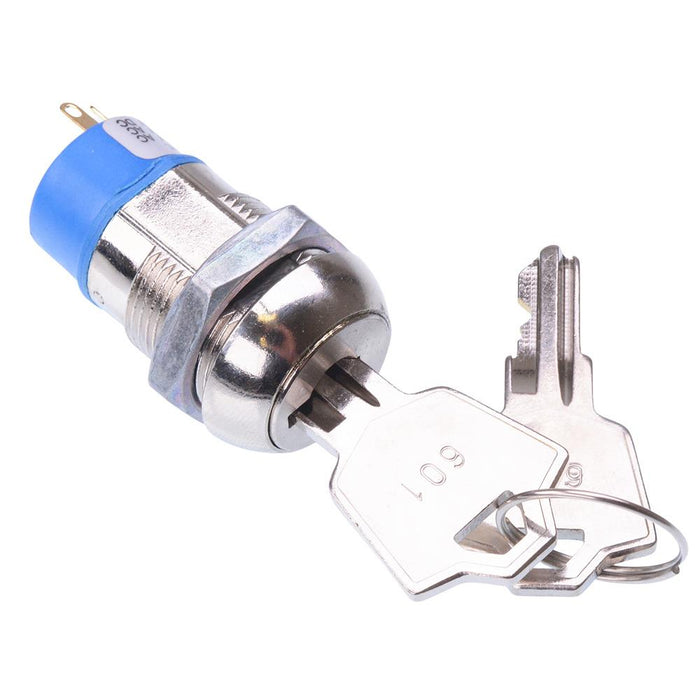

(On)-Off-(On) Momentary 3 Way 19mm Key Switch SPDT 4A APEM
SKU 487452
MPN: JD7510E-601
Availability:
26 in stock
Original price
£12.26
-
Original price
£12.26
Original price
£12.26
£12.88
£12.88
-
£12.88
Current price
£12.88
The JD7510E-601 is a high quality key operated switch from the JD series. The switch features momentary SPDT contacts and 3 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
3 position (On)-Off-(On) momentary SPDT contacts Nickel plated finish Key withdrawal in position 1 Panel cut-out: 19mm Indexing: 45° 601 key Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC Mechanical and electrical life: 6000 cycles at full load Dimensions: 28.8 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Nickel Plated |
| Contact Configuration | SP3T |
| Contact Material | Gold Plated Copper Alloy |
| Contact Rating | 4A 125VAC / 28VDC, 2A 250VAC |
| Current Rating | 4A @ 125VAC / 28VDC |
| Electrical Life | 6000 Cycles |
| Key Index Angle | 45° |
| Key Withdrawal Position | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 19mm |
| Product Series | JD |
| Protection Level | Gold Plated Copper Alloy |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
