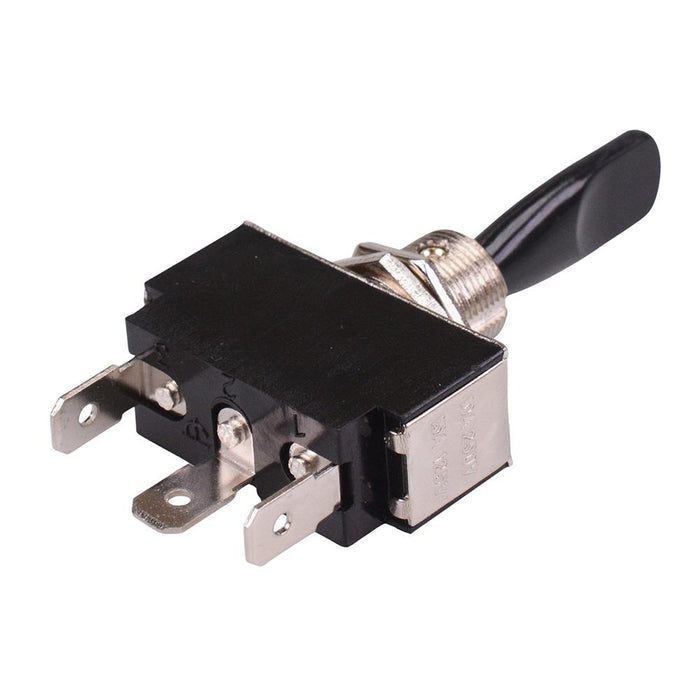

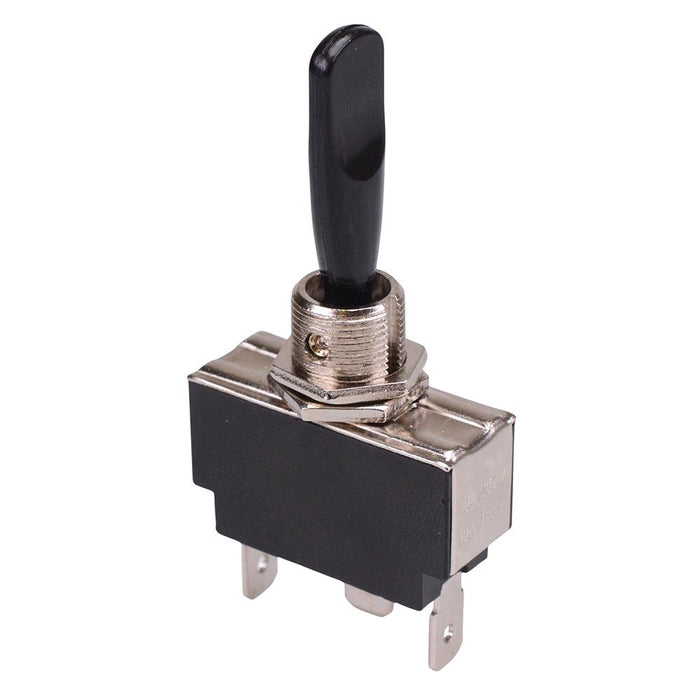

(On)-Off-(On) Momentary Blade Paddle 12mm Toggle Switch SPDT 10A 250VAC
SKU 491651
MPN: SK3(B)-123APE
Availability:
485 in stock
Original price
£1.98
-
Original price
£1.98
Original price
£1.98
£1.98
£1.98
-
£1.98
Current price
£1.98
Momentary (On)-Off-(On) function toggle switch featuring a black paddle handle and SPDT contacts. The switch features quick connect 6.3mm terminals and 15A currenting rating, suitable for a wide range of applications.
Function: momentary (On)-Off-(On) Contacts: SPDT Rating: 15A 125VAC, 10A 250VAC Panel cut-out: 12.2mm 6.3mm quick connect terminals Dimensions: 70.8 x 33.5 x 13mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 125VAC, 10A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
