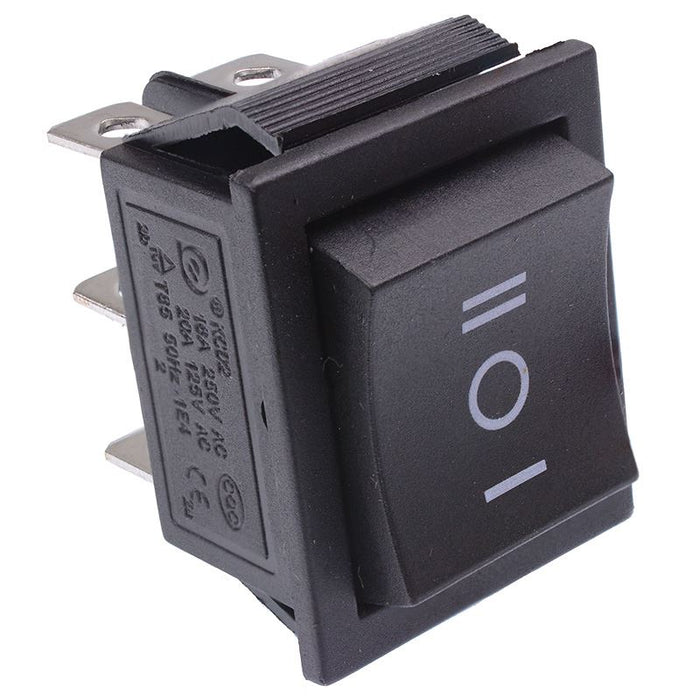

(On)-Off-(On) Momentary Large Rectangle Rocker Switch DPDT
SKU 131010
MPN: 131010
Availability:
183 in stock
Original price
£1.39
-
Original price
£1.39
Original price
£1.39
£1.39
£1.39
-
£1.39
Current price
£1.39
Momentary rectangle rocker switch with DPDT contacts suitable for applications where a higher rated switch is required.
(On)-Off-(On) action DPDT contacts 6.3mm quick connect terminals 28 x 21.5mm panel cut-out Maximum current: 16A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
