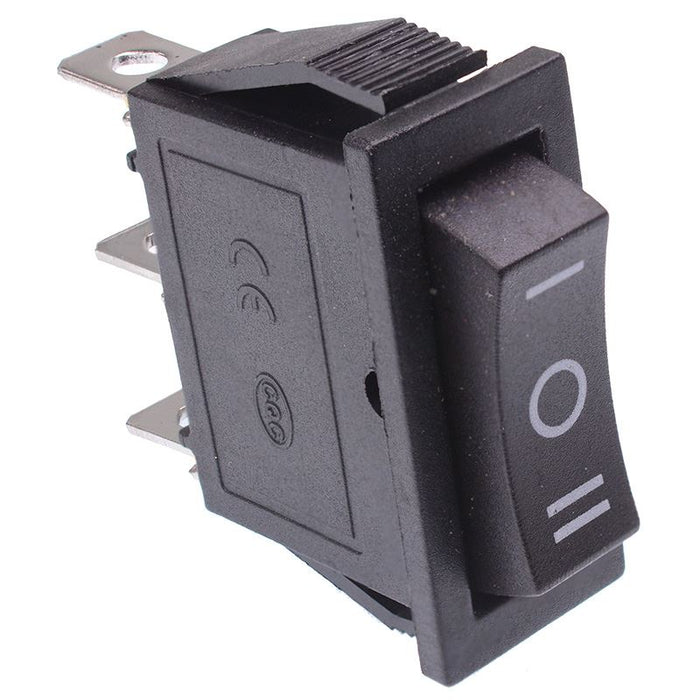

(On)-Off-(On) Momentary Long Rectangle Rocker Switch SPDT

SKU 132004

MPN: 132004

Availability:
44 in stock
Original price £1.25 - Original price £1.25
Original price
£1.25 Inc VAT
£1.25 - £1.25
Current price £1.25 Inc VAT
Momentary rectangle rocker switch with SPDT contacts and 3 position action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.

  • SPDT contacts
  • (On)-Off-(On) momentary action
  • 6.3mm quick connect terminals
  • Snap-in mounting
  • Panel cut-out: 28 x 10mm
  • Maximum voltage: 250VAC
  • Maximum current: 15A
  • Dimensions: 36.3 x 14 x 32mm (Height x Width x Length)
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 15A 250VAC, 20A 125VAC
    Current rating 20A
    Electrical life 10,000+ Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -25°C to +85°C
    Panel cut out 28 x 10mm
    Switch operation (On)-Off-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
