(On)-Off-(On) Momentary Rectangle Rocker Switch SPDT

SKU 130023

MPN: 130023

Availability:
144 in stock
Original price £0.71 - Original price £0.71
Original price
£0.71
£0.71 - £0.71
Current price £0.71

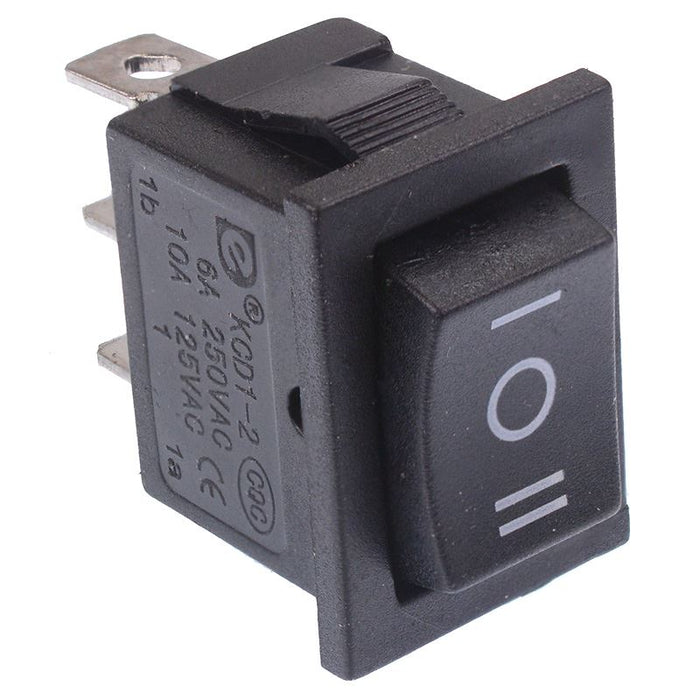

Momentary rectangle rocker switch with SPDT contacts and 3-position action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • (On)-Off-(On) action
  • SPDT contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 19.2 x 13mm
  • Dimensions: 25 x 21 x 15mm (Height x Length x Width)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Momentary
    Back Order Lead Time 40 Days
    Contact Configuration SPDT
    Contact Rating 6A 250VAC
    Current Rating 6A
    Electrical Life 10,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 3
    Operating Temperature -25°C to +85°C
    Panel Cut Out 19.2 x 13mm
    Switch Operation (On)-Off-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
