(On)-Off-(On) Momentary Round 20mm Rocker Switch 16A SPDT R13-112I-02
by SCI
SKU 490825
MPN: R13-112I-02
Availability:
339 in stock
Original price
£1.45
-
Original price
£1.45
Original price
£1.45
£1.45
£1.45
-
£1.45
Current price
£1.45

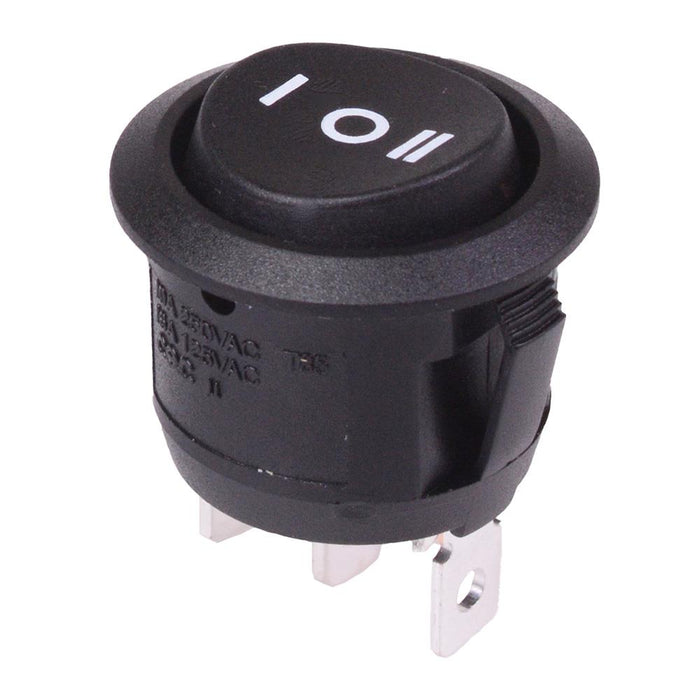

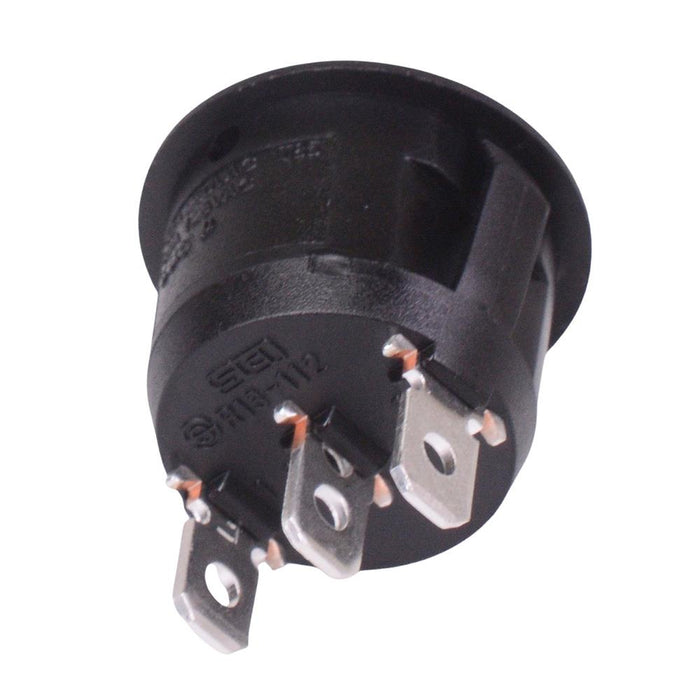

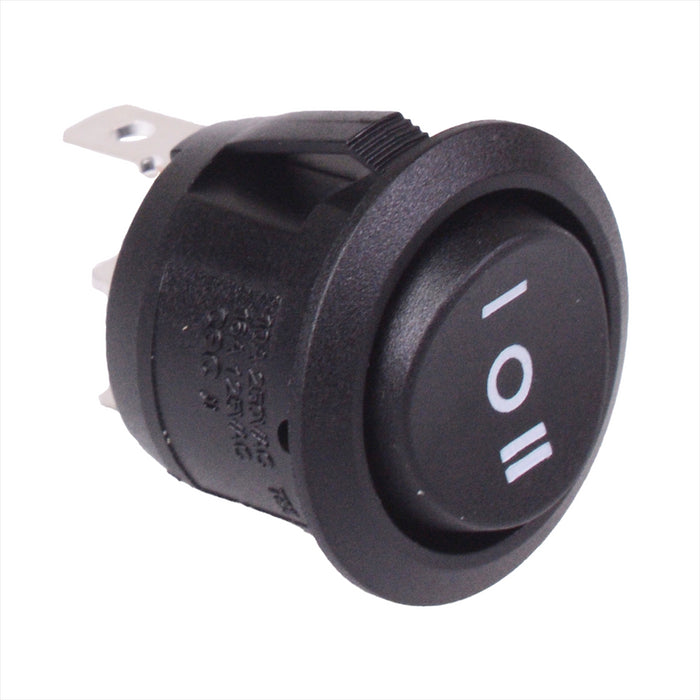

The R13-112I-02 is a momentary (On)-Off-(On) rocker switch housed in a 20mm circular package with white markings. The switch features SPDT contacts and quick connect terminals, suited for applications including automotive, industrial, appliances etc.
(On)-Off-(On) operation Contacts: SPDT Panel cut-out: 20.2mm Rating: 16A 125VAC, 10A 250VAC, 10A 28VDC, 20A 14VDC Terminals: 4.8mm quick connect Dimensions: 27 x 23mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A @ 125VAC |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-3mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
