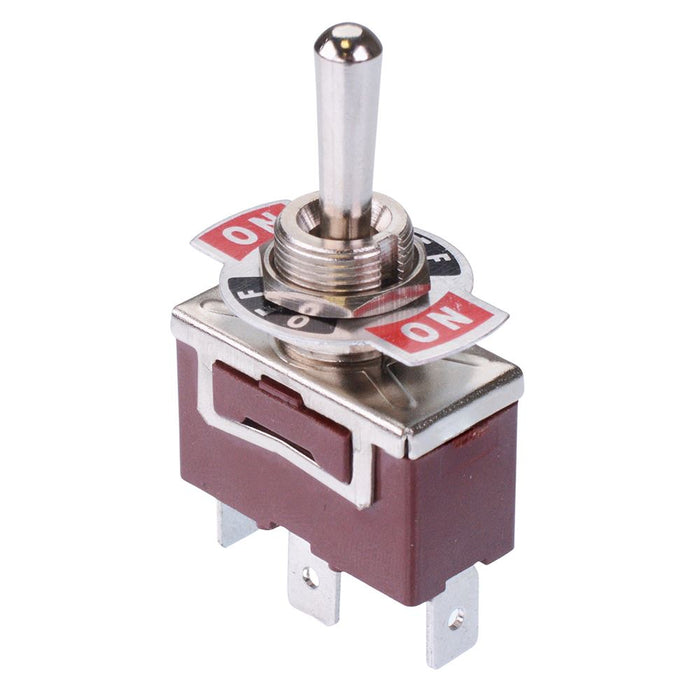

On-Off-(On) Momentary Toggle Switch SPDT 15A 250VAC
SKU 486897
MPN: 486897
Availability:
314 in stock
Original price
£2.23
-
Original price
£2.23
Original price
£2.23
Inc VAT
£2.23
-
£2.23
Current price
£2.23
Inc VAT
Standard size toggle switch featuring On-Off-(On) momentary operation and SPDT contacts. The switch provides a reliable mechanism and is suitable for 12mm panel mount applications.
On-Off-(On) operation, () indicates momentary position SPDT contacts Rating: 10A 250VAC, 15A 125VAC 6.35mm quick connect terminals Panel cut-out: 12mm
Specification
| Actuation | Latching / Momentary |
| Back order lead time | 40 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 15A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -25°C to +80°C |
| Panel cut out | 12mm |
| Switch operation | On-Off-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
