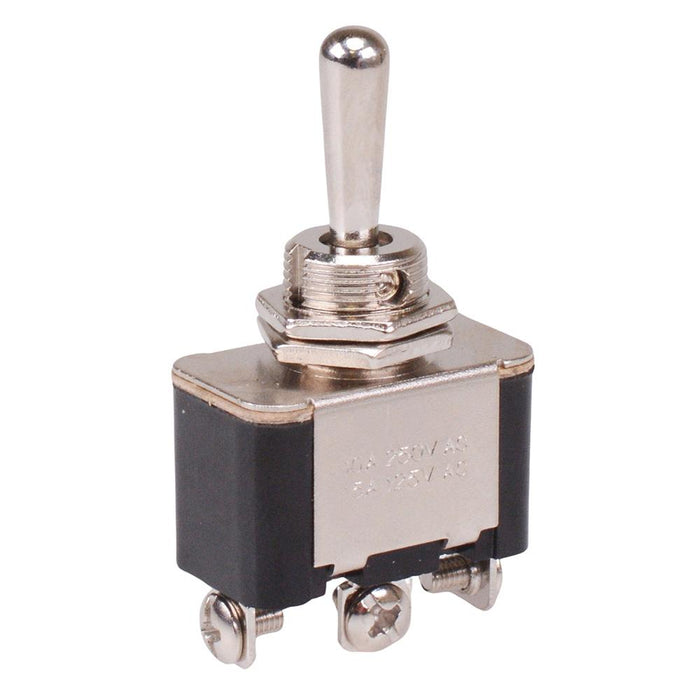

(On)-Off-(On) Momentary Toggle Switch SPDT 15A
SKU 489278
MPN: KN3(A)-123A
Availability:
956 in stock
Original price
£2.29
-
Original price
£2.29
Original price
£2.29
£2.40
£2.40
-
£2.40
Current price
£2.40
3 position momentary toggle switch featuring a 12mm bushing and SPDT contacts with screw terminals. The switch features a 15A current rating and is suitable for a wide range of applications including automotive.
(On)-off-(on) momentary action SPDT contacts M12 x 0.75mm threaded bushing Panel cut-out: 12.2mm Rating: 15A 125VAC, 10A 250VAC Dimensions: 51 x 28 x 16mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 125VAC, 10A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
