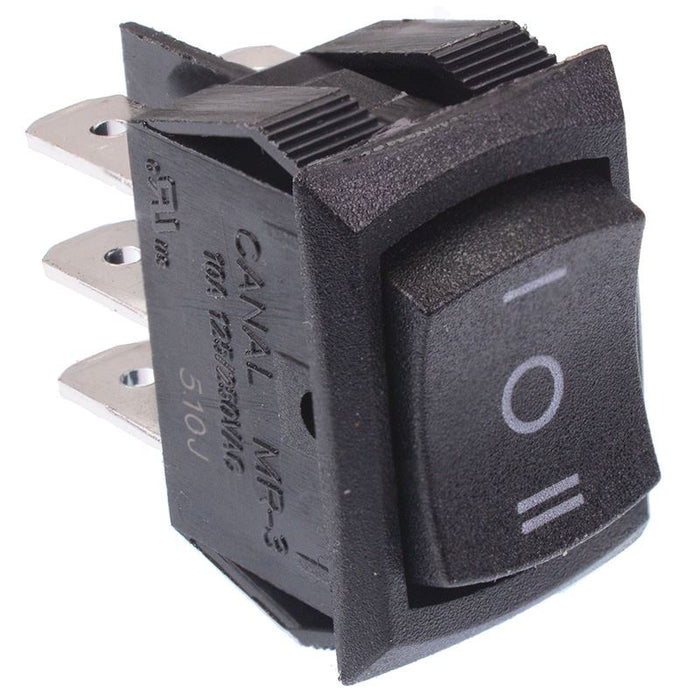

On-Off-On Rectangle Rocker Switch DPDT 10A

by Canal
SKU 482711

MPN: MR3-230-C6-BBNWC

Availability:
722 in stock
Original price £1.12 - Original price £1.12
Original price
£1.12 Inc VAT
£1.12 - £1.12
Current price £1.12 Inc VAT
Rectangular rocker switch with an On-Off-On action and DPDT contacts, housed in a compact package. The switch features quick connect terminals and snap-in mounting making them ideal for applications requiring a reliable easy to fit switch.

  • On-Off-On action
  • DPDT contacts
  • 4.8mm quick conect terminals
  • Panel cut-out: 19 x 13mm
  • Dimensions: 24.8 x 21 x 15mm (Height x Length x Width)
  • Rating: 10A 125VAC, 6A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration DPDT
    Contact rating 10A 125VAC, 6A 250VAC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -20°C to +85°C
    Panel cut out 19 x 13mm
    Switch operation On-Off-On
    Terminal type Quick Connect
    Voltage rating 250VAC
