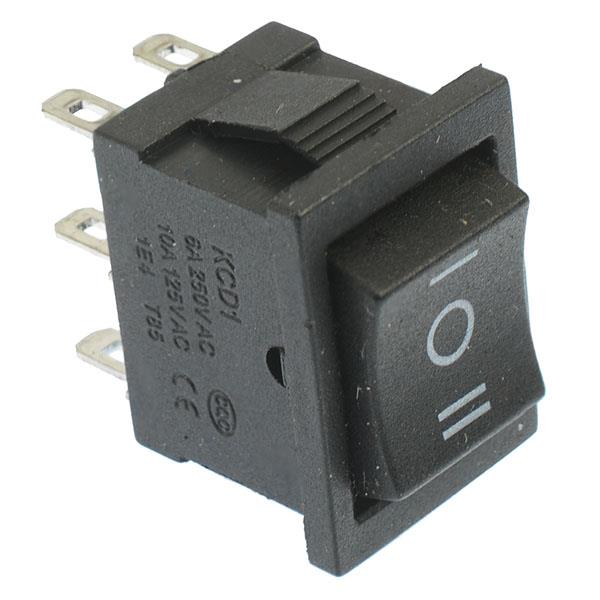

On-Off-On Rectangle Rocker Switch DPDT 6A 250VAC
SKU 482248
MPN: 482248
Availability:
Out of stock
Sold out
Original price
£0.88
-
Original price
£0.88
Original price
£0.88
£0.88
£0.88
-
£0.88
Current price
£0.88
On-Off-On rectangular rocker switch featuring DPDT contacts and 2.8mm quick connect terminals, suitable for domestic and industrial applications.
On-Off-On operation DPDT contacts 2.8mm quick connect terminals Snap-in mounting Rating: 10A 125VAC / 6A 250VAC Panel Cut-Out: 19.2 x 13mm Dimensions: 24.6 x 21.3 x 15.2mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
