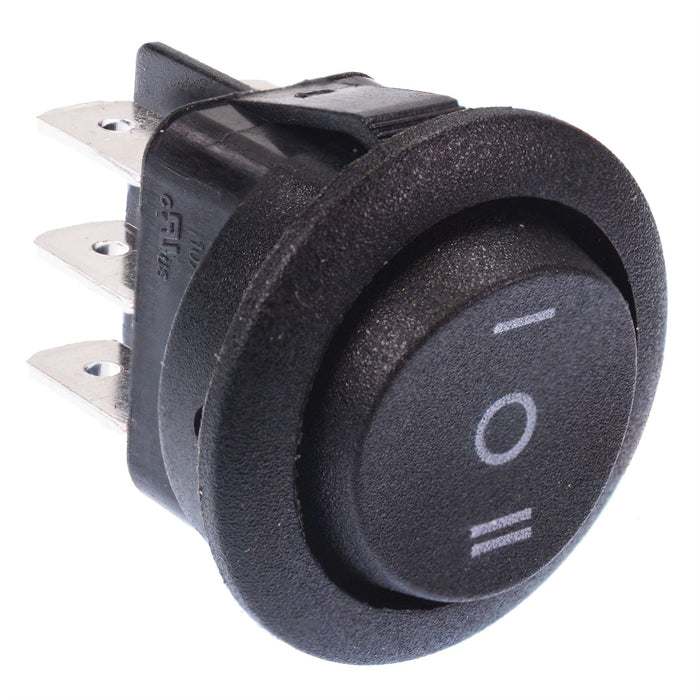

On-Off-On Round Rocker Switch DPDT 10A
by Canal
SKU 482714
MPN: MR3-230-R6-BBNWC
Availability:
683 in stock
Original price
£0.98
-
Original price
£0.98
Original price
£0.98
£0.98
£0.98
-
£0.98
Current price
£0.98
Circular rocker switch with an On-Off-On action and DPDT contacts, housed in a compact package. The switch features quick connect terminals and snap-in mounting making them ideal for applications requiring a reliable easy to fit switch.
On-Off-On action DPDT contacts 4.8mm quick conect terminals Panel cut-out: 20mm Dimensions: 26.2 x 23mm (Height x Diameter) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | DPDT |
| Contact Rating | 10A 125VAC, 6A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
